Offer #1080

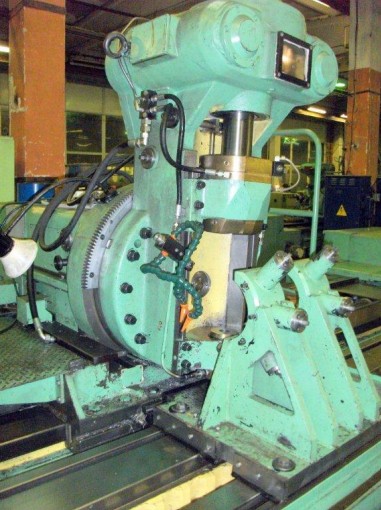

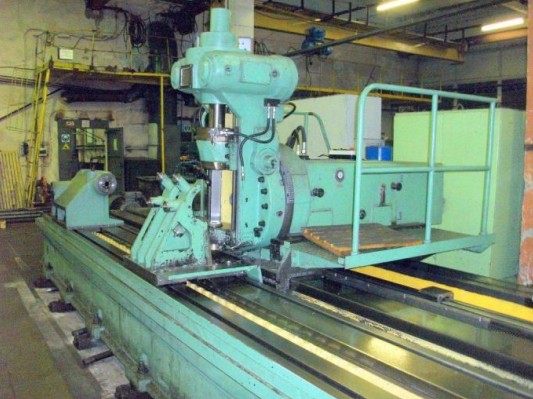

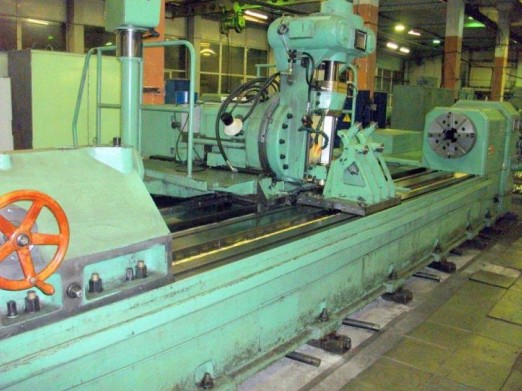

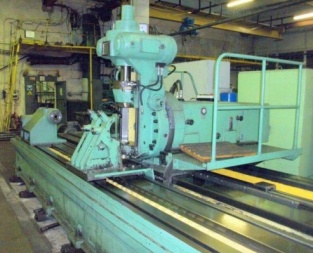

Horizontal gear milling machine 5V370 PK-02
YOM: 2007
Manufacturer: KOLOMNA
Made in: Russia
Specification:
Max. diameter of the toothed wheels: 500 mm
Max. work-piece diameter: 900 mm
Max. work-piece length: 5000 mm
Max. work-piece weight: 5000 kg
Max. module of the toothed wheels:
-Worm milling cutter: 20 mm
-Disk milling cutter: 25 mm
Max. inclination angle of gears of the toothed wheels: ±45 degrees
Range of numbers of cut teeths: 2...12
Max. movement length of the support:
-Longitudinal: 4800 mm
-Radial: 350 mm
Main drive power: 30 kW
Overall machine dimensions:
-Length: 13310 mm
-Width: 4300 mm
-Height: 2660 mm
Machine weight: 35000 kg
