Offer #1266

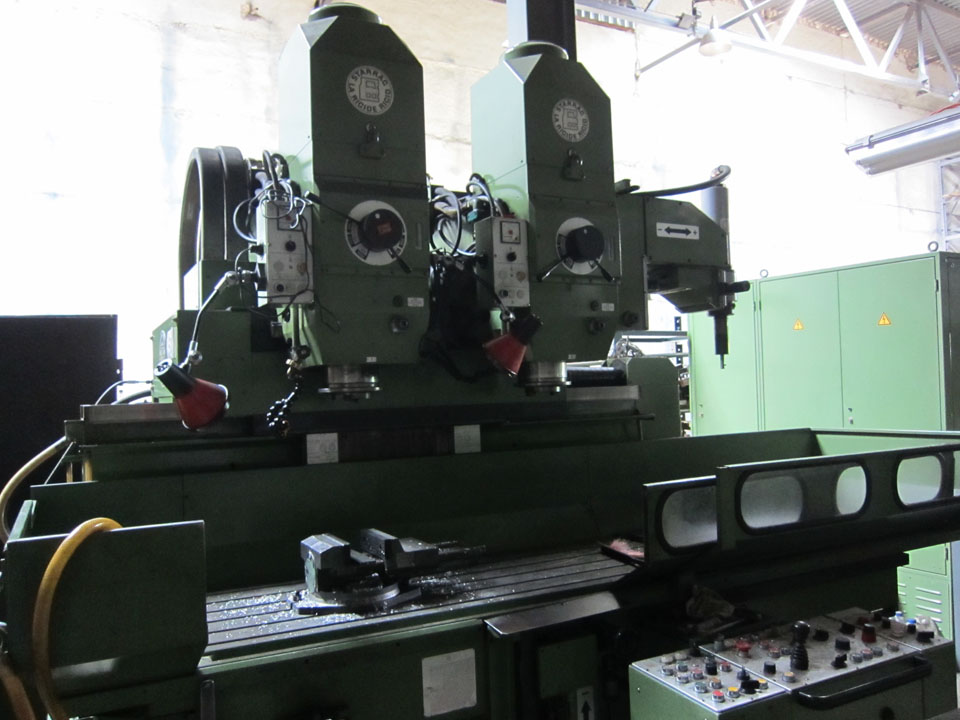

Universal copy milling machine STARRAG model CF200F/2
YOM: 1989
Manufacturer: Starrfragfrasmaschinen AG
Made in: Switzerland
Double spindle. Intended for a wide range of metalworking operations on soft and hard metal alloys and polymers by milling a couple of work-pieces according to available copier, or according to the program set in CNC, or manually. Function of especially thin copying. Analog to digital conversion. Manograph. Peripheral processing with vertical copying. Peripheral processing 360 degrees with vertical linear feed. Partial peripheral processing. Peripheral pendular milling. Peripheral pendular milling with vertical linear feed. Linear copying. Linear milling.
Specification:
CNC Control: Fidia
Table stroke:
-On X-axis: 900 mm
-On Y-axis: 500 mm
-On Z-axis: 400 mm
Probe diameter: 10h6 mm
Probe length: 60-150 mm
Max. probe length: unlimited
Probe weight: up to 1,5 kg
Max. probe weight at a lower surface quality: 3 kg
Force on probe (vertical): 500 g
