Offer #1896

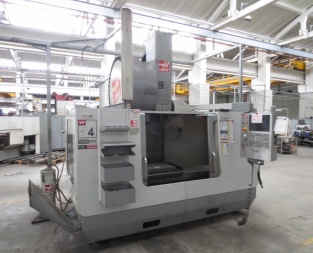

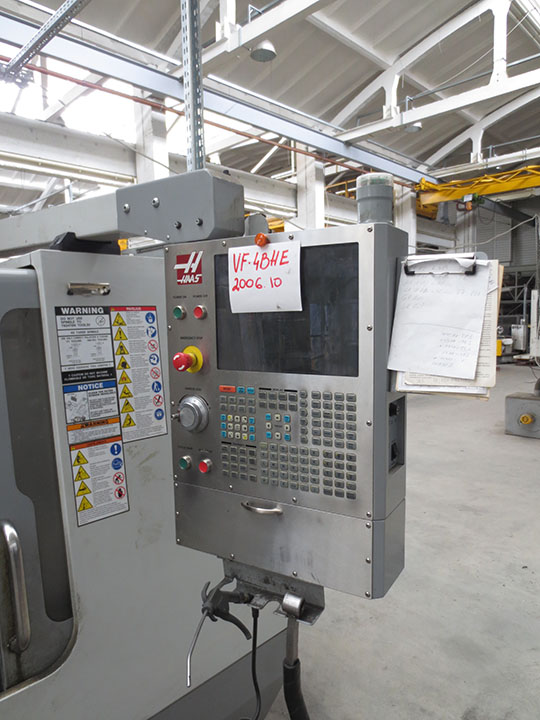

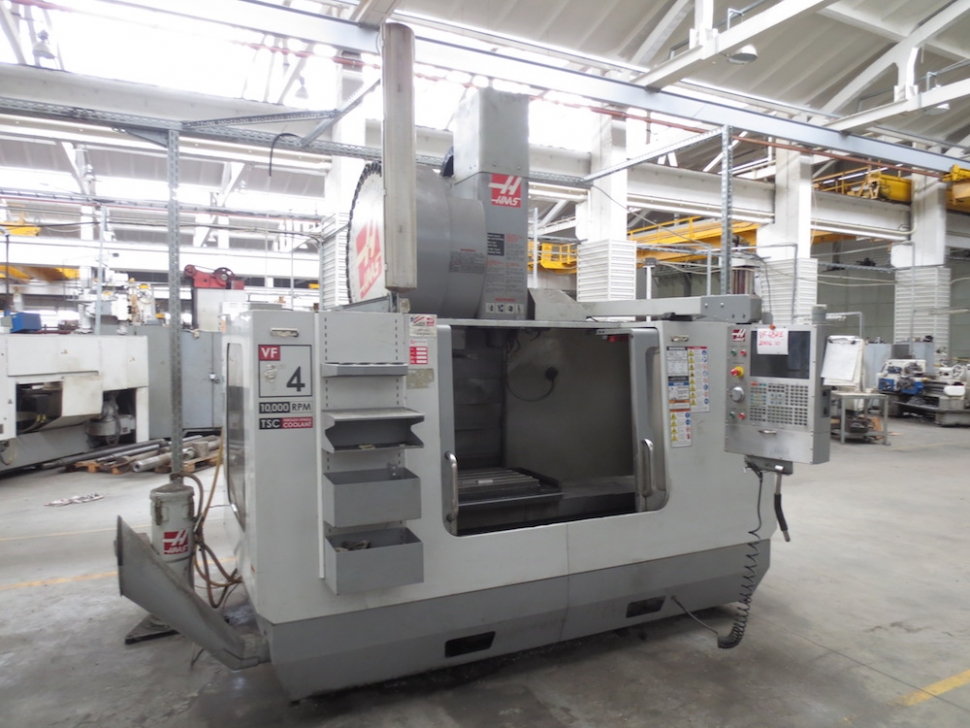

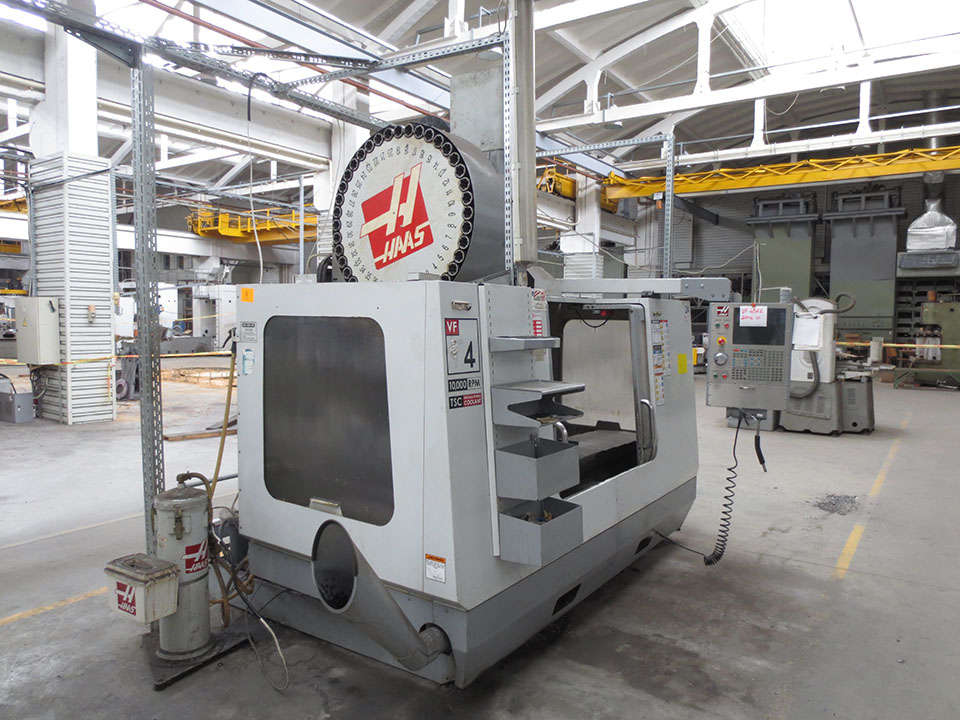

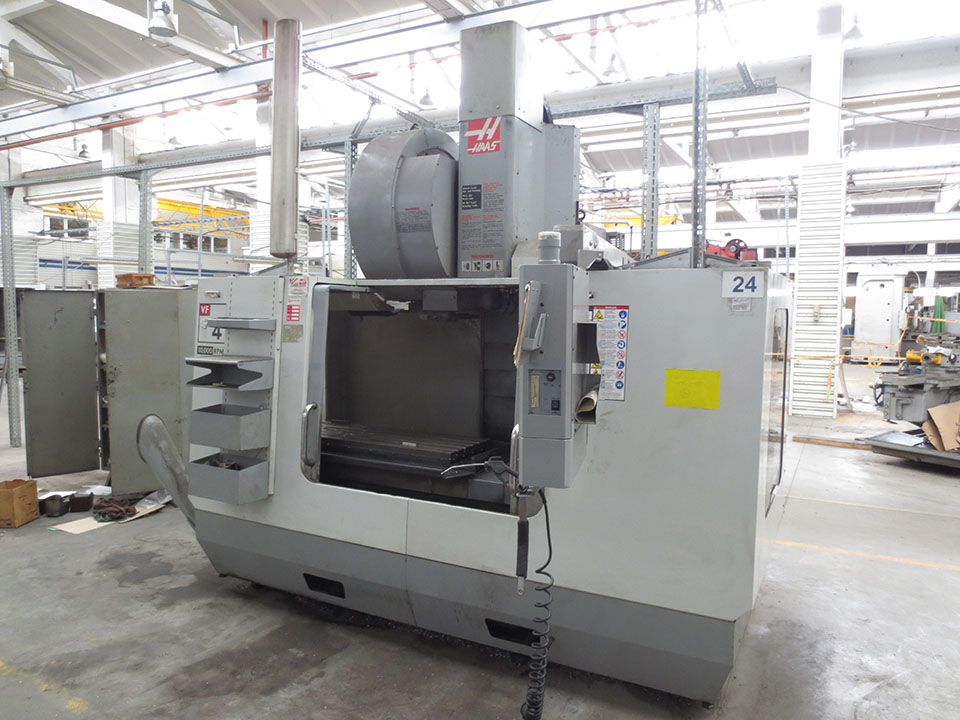

CNC VMC HAAS VF4BHE
YOM: 2006
Manufacturer: HAAS
Made in: USA
Specification:
Working stroke:
-X-axis: 1270 mm
-Y-axis: 508 mm
-Z-axis: 635 mm
Distance between spindle end and table: 102-737 mm
Table size: 1321x457 mm
Max. work-piece weight: 1588 kg
T-slot width: 15,875 mm
Distance between T-slots: 80 mm
Spindle taper: ISO 40
Max. spindle rotation: 7500 rpm
Number of speeds: 2
Max. torque at 450 rpm: 339 Nm
Max. spindle power: 15 kW
Max. power of axis drive: 3,73 kW
Max. torque of axis drive: 11 Nm
Max. rapid stroke on X, Y, Z: 25400 mm/min
Max. working stroke: 16500 mm/min
Number of tools: 20
Max. tool diameter: 89 mm
Max. tool weight: 5,4 kg
Tool change time: 4,2 sec
Accuracy of positioning: +/-0,0051 mm
Repeatability: +/-0,0025 mm
Air pressure: 6,9 bar
Air output: 113 l/min
Voltage: 400 V
Machine weight: 3629 kg
