Offer #1464

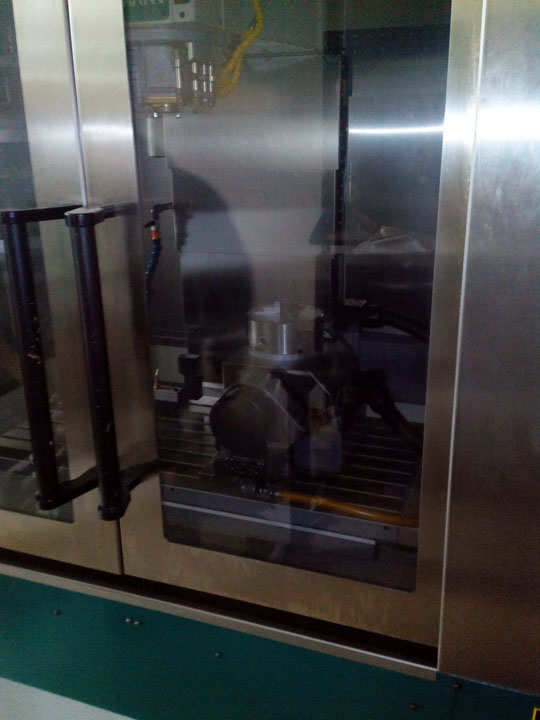

CNC Machining centre FEHLMANN PICOMAX 60-M
YOM: 2007
Manufacturer: Fehlmann AG
Made in: Switzerland
Specification:
Travelling distances:
-X (longitudinal stroke): 500 mm
-Y (transversal stroke): 350 mm
-Z (stroke of the machine head): 610 mm
-B: -5° to 108° degrees
-C: 0° to 360° degrees
Feeds, rapid movements:
Speeds:
-X and Y: 12000 mm/min
-Z: 12000 mm/min
Feed efforts:
-X and Y: 6000 N
-Z: 12000 N
Rapid movements:
-X and Y: 20 mm/min
-Z: 20 mm/min
Working table dimensions:
-Clamping surface L x W: 920x380 mm
-Table-to-spindle nose distance: 94-704 mm
Table T-slots:
-Number: 7
-Width: 12-H8 mm
-Step: 50 mm
Max. table load: 250 kg
Height above floor level: 1004 mm
Horizontal take-off: 405 mm
Work spindle:
-Output at S6 (40%ED): 10,2 kW
-Speed: 50-18000 1/min
-Tool change: 24 tools
-Max. spindle torque: 70 Nm
Tool changing device:
-Number of positions: 24
-Max. tool diameter at full load: 63 mm
-Max. tool diameter at non-full load: 125 mm
-Max. tool length: 280 mm
-Max. tool weight: 3 kg
Total power requirement: 20 kW
Other data:
-Cutting feedrate/rapid feed: 1-20700 mm/min
-Control unit: TNC 530 Heidenhain CNC continuous path control
-Installation space (W/D/H): 2000/1700/3000 mm
-Weight: 3350 kg
