Offer #2246

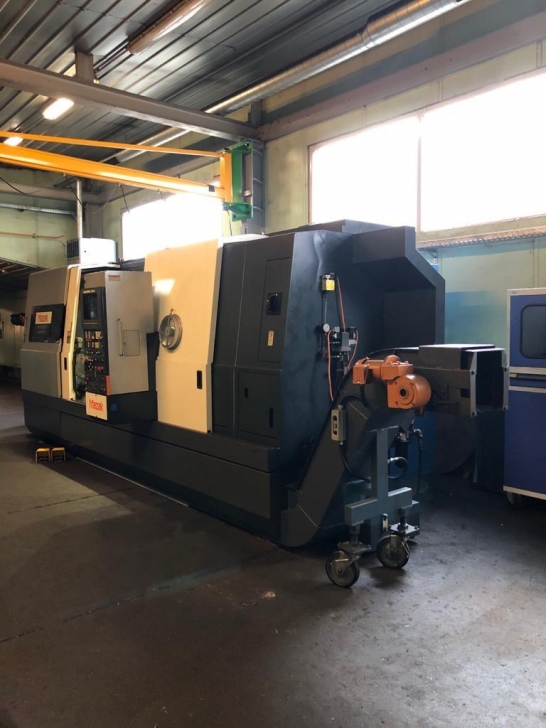

CNC Horizontal machining center MAZAK INTEGREX 40 ATO MC
YOM: 1990
Manufacturer: YAMAZAKI MAZAK CORP.
Made in: Japan
Specification:
Control: Mazatrol T32
Max. swing: 560 mm
Max. cutting diameter: 400 mm
Distance between centers: 2060 mm
Turret travel:
-X-axis: 615 mm
-Z-axis: 2122 mm
Spindle speed: 3-2200 rpm
Tailstock spindle travel: 130 mm
Max. load:
-Chuck work: 400 kg
-Shaft work: 1500 kg including chuck
Rapid speed:
-X-axis: 12000 mm/min
-Z-axis: 15000 mm/min
Main drive motor: 30 kW
Machinery weight: 11300 kg
