Offer #766

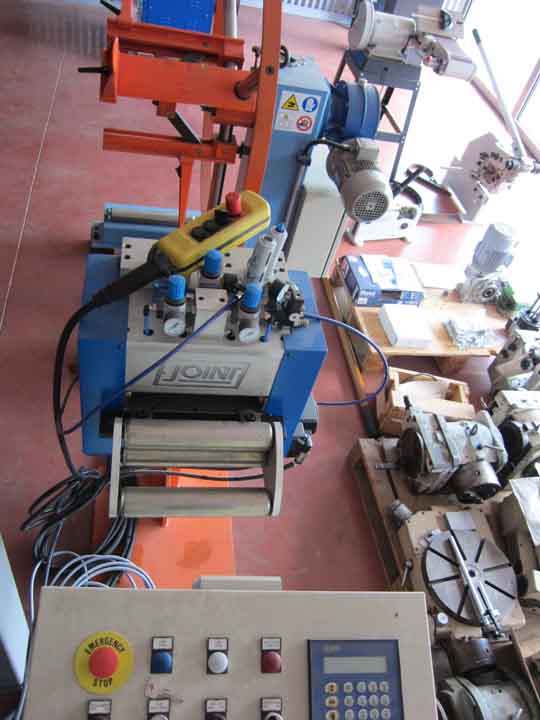

Decoiling and straightnening line JOINT
YOM: 2003
Manufacturer: JOINT
Made in: Italy
Sheet decoiling and straightnening line for presses with electronic control.
Machine is new from exposition, never used.
Specification:
Decoiler:
-Type: JDM 0.5
-Serial number: 1452
-Mаx. strip width: 290 mm
-Mass daN (Kgf): 400
-Capacity (kgf): 500
Decoiler electricity:
-Rated voltage: 400 V
-No. phases: 3+T
-Frequency: 50 Hz
-Working current: 4.2 A
-Load: 3.9 A
-Breaking capacity: 50 KA
Straightener:
-Type: JFL9W02
-Serial number: 1451
-Mаx. strip width: 250 mm
-Mаx. strip thickness: 3,0 mm
-Min. strip thickness: 0,4 mm
-Accuracy: +/- 0,05 mm
-Power: 2 kW
-Speed: 0-90 m/min
-Mass (Kgf): 150
Control desk electricity:
-Rated voltage: 400 V
-No. phases: 3+T
-Frequency: 50 Hz
-Working current: 11 A
-Load: 9.72 A
-Breaking capacity: 50 KA
