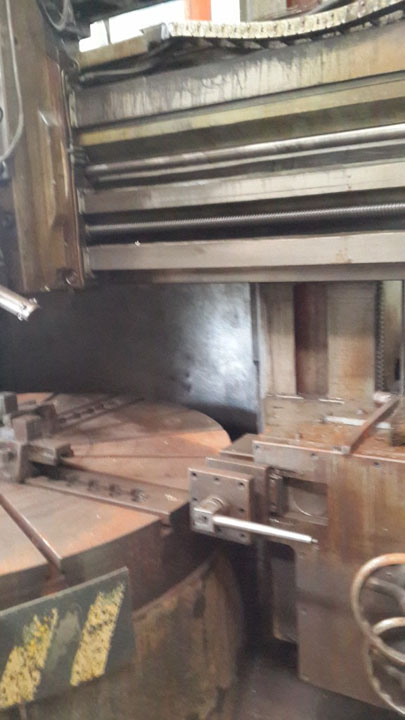

Vertical Turret Lathe SC-22

Offer #1141

Vertical Turret Lathe SC-22
YOM: 1982
Type: double column
Manufacturer: UMARO
Made in: Romania

The machine is connected on the base, it can be checked during operation.
One (left) toolholder doesn't work. It is removed, but available.

Specification:

Swing: 2200 mm
Table diameter: 2000 mm
Max. working height: 1500 mm
Table speed range: 1-140 rpm
Max. work-piece weight: 12000 kg
Right head vertical stroke: 760 mm
Left head vertical stroke: 1250 mm
Ram travel: 1500 mm
Main motor: 55 kW
Dimensions:
 -Length: 4600 mm
 -Width: 4300 mm
 -Height: 4200 mm
Machine weight: 32000 kg
