Offer #627

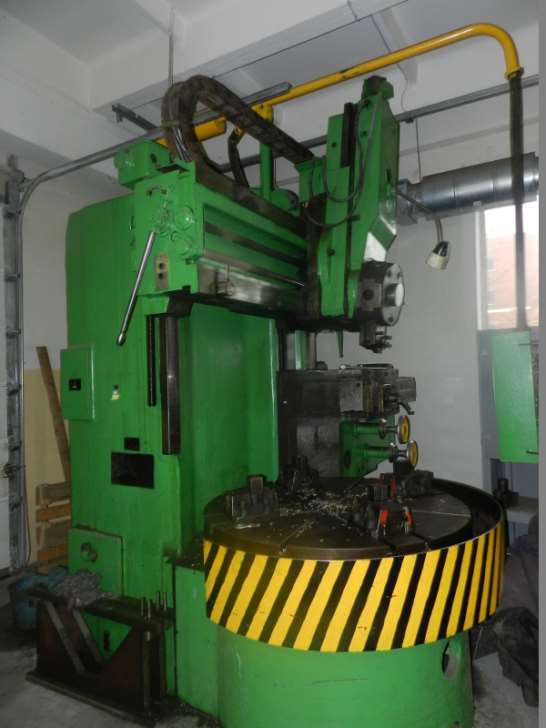

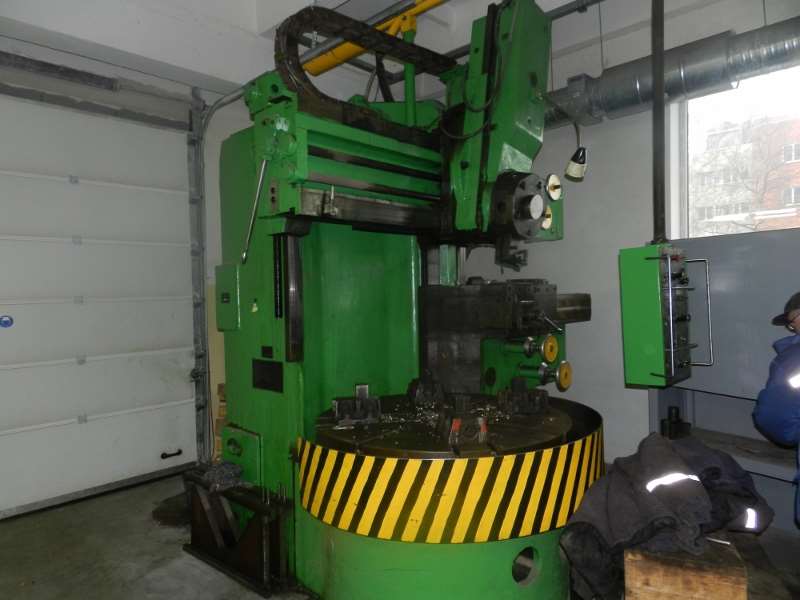

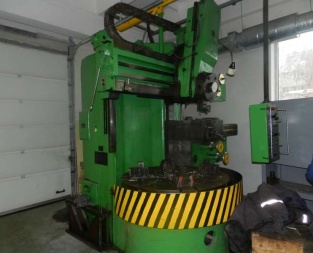

Vertical turning lathe SEDIN 1516
YOM: 1981
Type: Single Column
Manufacturer: Sedin
Made in: Russia
Specification:
Turning diameter: 1600 mm

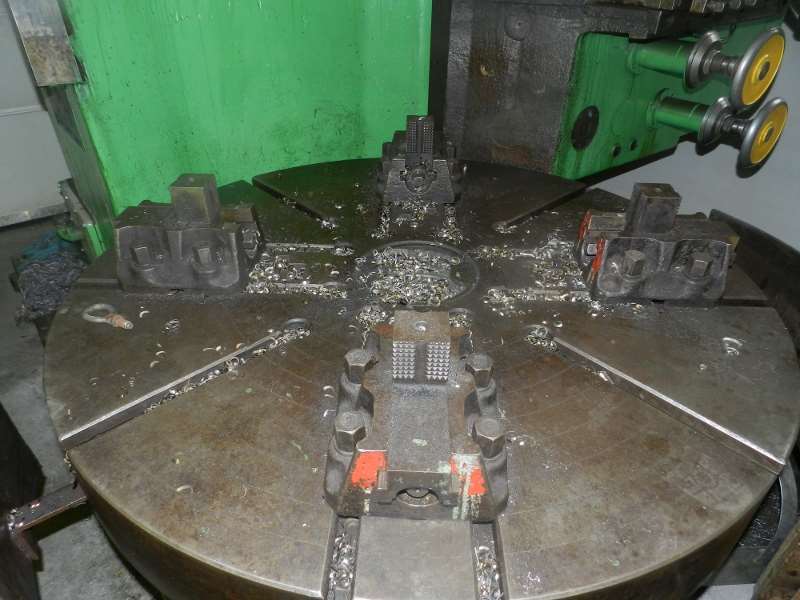

Table diameter: 1400 mm
Max work-piece height: 1000 mm
Max table loading: 5000 kg
Max horizontal ram travel: 630 mm
Max horizontal carriage travel: 975 mm
Max vertical ram travel: 700 mm
Max vertical carriage travel: 1000 mm
No of feed carriages: 16
Carriages feed range: 0,07-12,5 mm/rev
Distance between table and ram: 0-1225mm
Fast stroke: 2000 mm/min
Main motor power: 30 kW
Speeds range: 4 - 200 rpm
Dimensions: 3190x3360x4100 mm
Weight: 19200 kg
