Offer #470

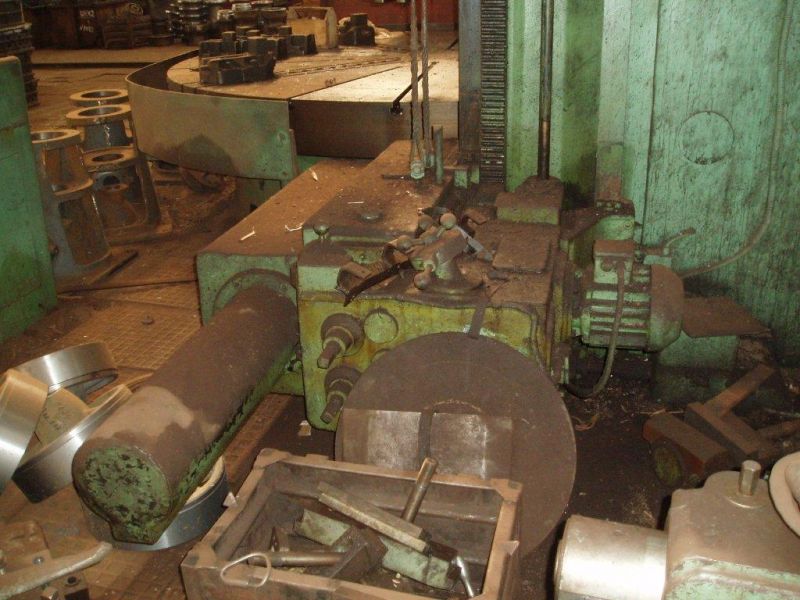

Vertical turning lathe RAFAMET KCF-320
YOM: 1964
Made in: Poland
Manufacturer: Rafamet
Specification:
Table diameter: 3200 mm
Max turning diameter:
-With vertical carriage: 3500 mm
-With side carriage: 3200 mm
Table speeds range: 0.8 - 40 rpm
Table speeds number: 18
Max work-piece:
-Height: 1850 mm
-Weight: 25 ton
Feeds:
-Number: 12
-Of vertical right carriage and side carriage: 0.24-10.6 mm/min
-Of left vertical carriage: 0.185-8.16 mm/min
-Of vertical carriages (rapid): 910 mm/min
-Of side carriage (rapid): 1250 mm/min
Min distance between axis of vertical carriages: 500 mm
Max ram travel of vertical carriages: 1000 mm
Max travel over the table of the tool holder of the side carriage: 1230 mm
Max ram travel of the side carriage: 800 mm
Min turning diameter of the side carriage: 1600 mm
Turning angle of the vertical carriages: 0-30 degrees
Threads: 2-20 mm (metric), 1-11 tpi (inch)
Rapid feeds of traversal beam: 580 mm/min
Max distance between table and traversal beam: 2000 mm
Main motor power: 55 kW
Machine dimensions: 7730x6240x6700 mm
Machine Weight: 70 ton
