Offer #619

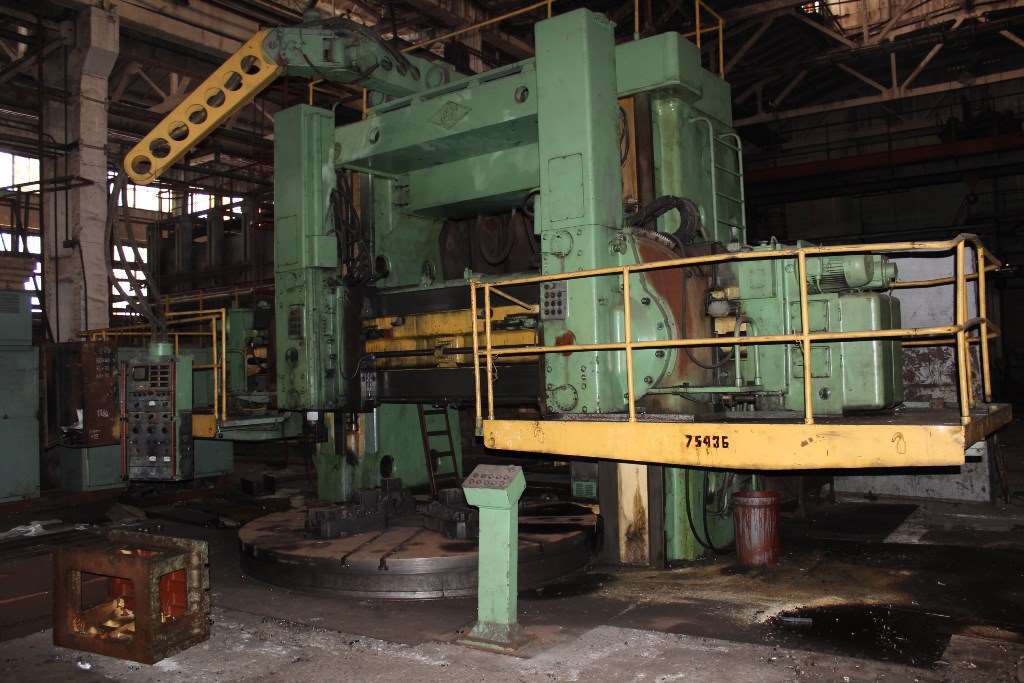

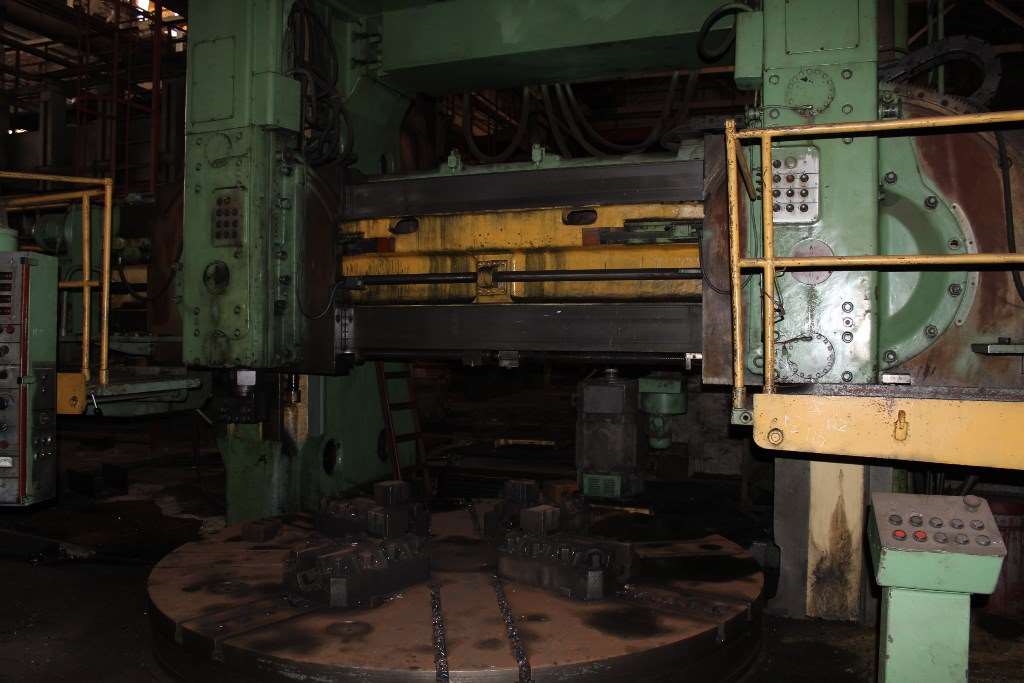

Vertical turning lathe KOLOMNA KU-518F1
YOM: 1993
Manufacturer: Kolomna
Made in: Russia
Specification:
Diameter of a work-piece: 3200 mm
Height of a work-piece: 2000 mm
Weight of a work-piece: 50000 kg

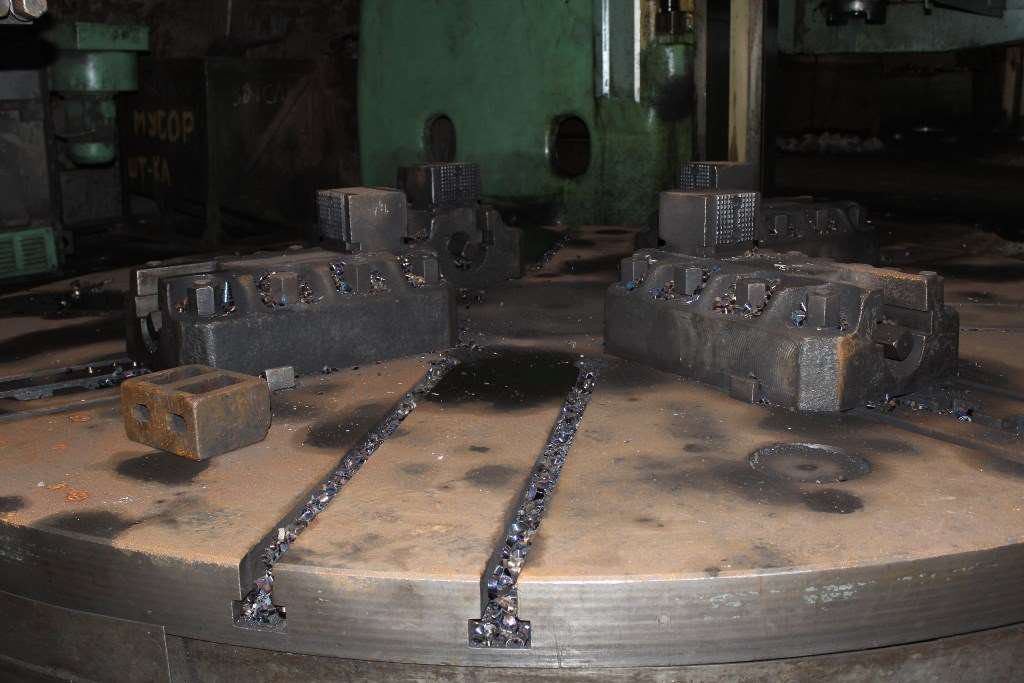

Diameter of a faceplate: 3200 mm
Precision category N according to GOST 8-82
Max length of a slider stroke:
-Upper right turning: 1250 mm
-Upper left combinated: 1250 mm
Table speeds: 0.66 - 62.1 rpm
Max cutting effort: 125 kH
Feeding: 0.059 - 470 mm/min
Rapid feeding: 2715 mm/min
Capacity of the main drive (no less): 70 kw
Overall machine dimensions:
-Lenght: 5100 mm
-Width: 9300 mm
-Height: 7200 mm
-Height above a floor level: 6080 mm
Machine weight with electric equipment: 95.4 ton
