Offer #606

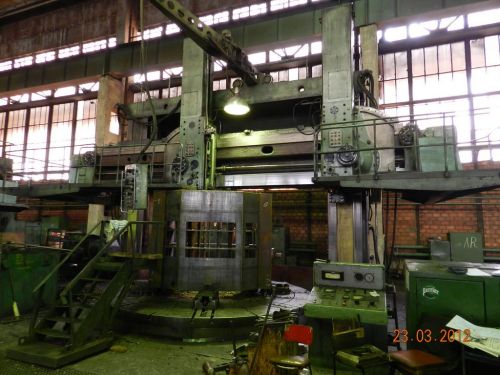

Vertical turning lathe KOLOMNA 1550
YOM: 1967
Made in: Russia
Manufacturer: KOLOMNA
Specification:
Table diameter: 4500 mm
Swing: 5000 mm
Table speed: 0,34-31,2 rpm
Max work-piece height: 2500 mm
Max work-piece weight: 63 ton
Course of vertical supports sliders: 1600 mm
Max. turning angle of carrier: -15 +40 degree
Effort of cutting to a right support: 80 kH
Effort of cutting to the left support: 63 kH
Max total effort of cutting by two supports: 125 kH
Limits of vertical and horizontal feeding: 0,0435 - 352 mm/min
Height above a level of a floor: 6900 mm
Dimension:
-Length: 6100 mm
-Width: 11400 mm
-Height:9100 mm
Height above floor: 6900 mm
Main motor: 125 kW
Total weight: 140500 kg
