Offer #638

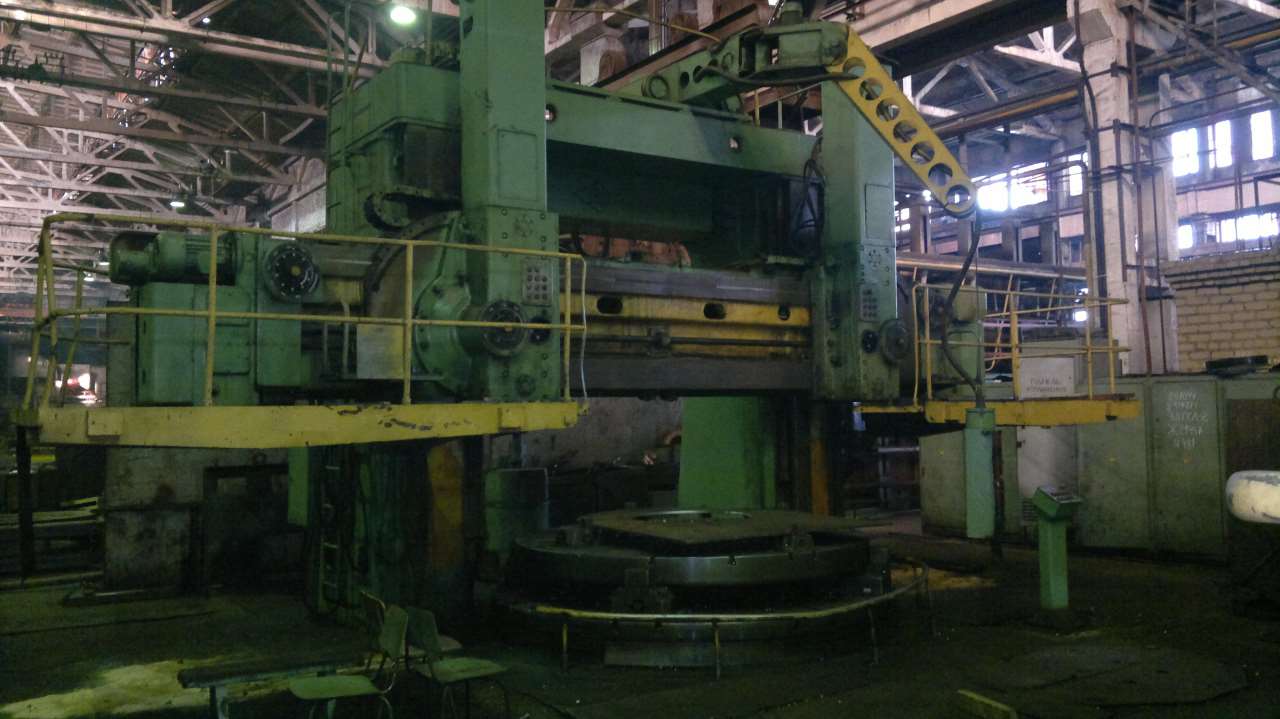

Vertical turning lathe KOLOMNA 1532T
YOM: 1978
Manufacturer: Kolomna
Made in: Russia
Specification:
Max work-piece diameter: 3200 mm
Table diameter: 3200 mm
Table speed: 0.66 - 62.1 rpm
Max slide-block course of vertical supports: 1250 mm
Max turn angle of supports: -15 +40 degrees
Max work-piece height: 2000 mm
Max work-piece weight: 40 ton
Max cutting effort at the:
-Right support: 6300 mm
-Left support: 5000 mm
Max total cutting effort of both supports: 10000 kgs
Max torque at the faceplate: 12500 kgm
Limits of the vertical and horizontal feeds: 0.059-470 mm/min
Horizontal ram movement: 1900 mm
Vertical ram movement: 1250 mm
Main motor: 63 kW
Height above a floor level: 6000 mm
Dimensions:
-Length: 9300 mm
-Width: 5100 mm
-Height: 7200 mm
Voltage: 380 V
Machine weight: 90400 kg
