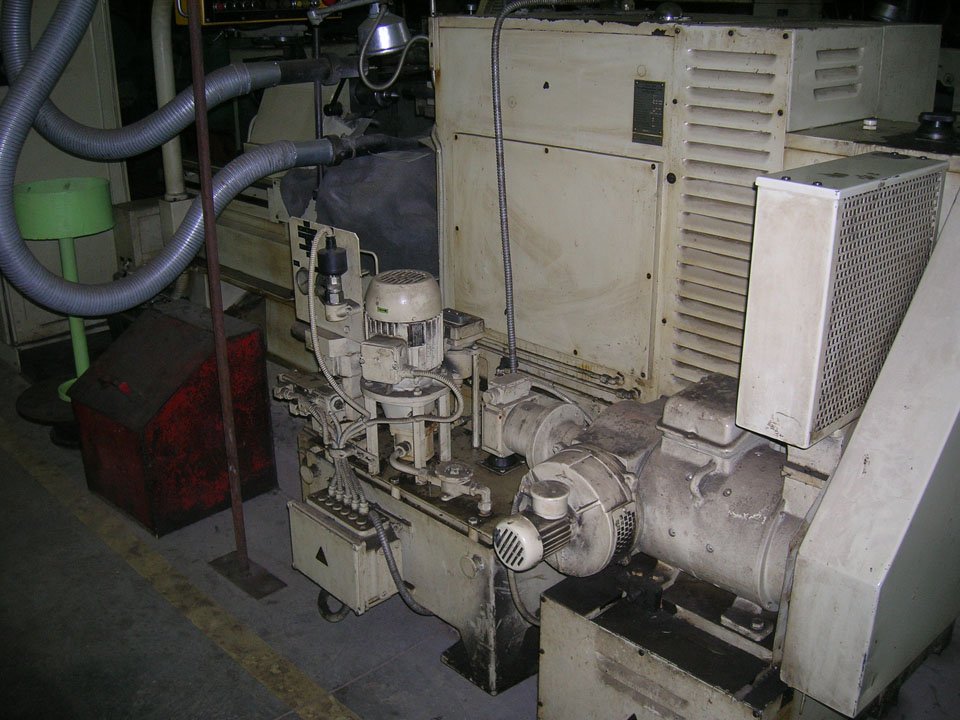

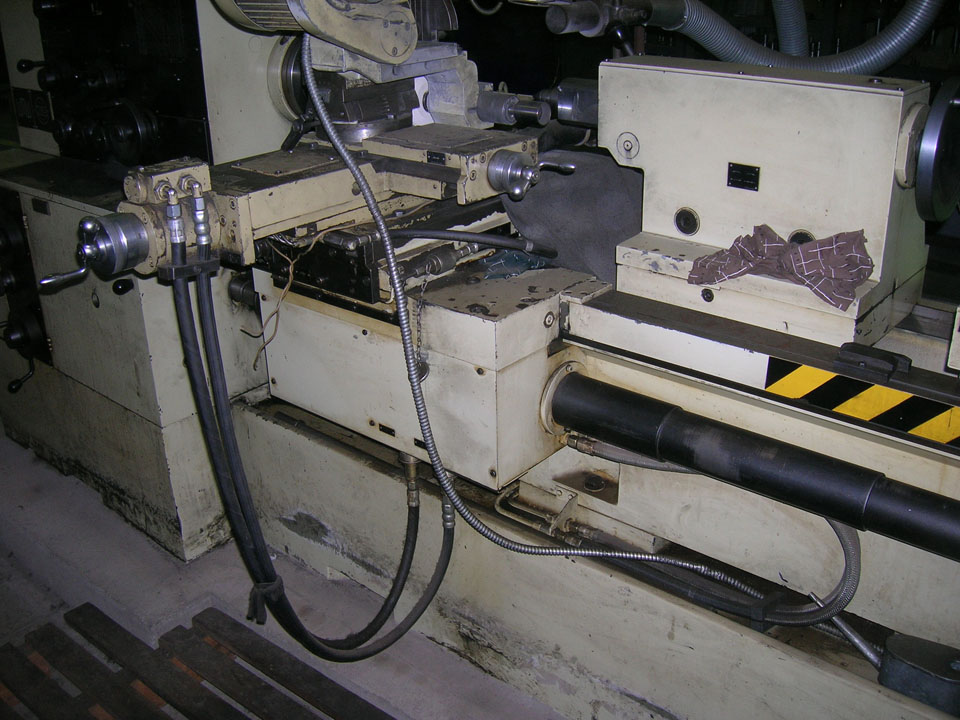

Relieving lathe NILES DH250/4

Offer #1095

Relieving lathe NILES DH250/4
YOM: 1983-87
Made in: Germany
Manufacturer: WMW NILES

Quantity: 4 units
Change gears and some accessories are available.

Specification:

Centre height of relief turning slide: 150 mm
Centre height over bed: 300 mm
Max. turning length: 630 mm
Max. centre distance: 1000 mm
Relief turning and cross slide swivelling each: 360 degrees
Bore in work spindle: 27 mm
Tool quick draw-back: 40 mm
Relief turning stroke, stepless within 4 steps: 0–32 mm
Spindle speeds, stepless within 4 steps: 1–400 rpm
Draw back speeds, stepless: 2,5–630 rpm
Threads: metric 0,4 - 71 mm
18 longitudinal feeds: from 0.063 to 10 mm
Main motor: 380V; 50Hz; 9kW
Machine weight: 6500 kg
