Offer #1580

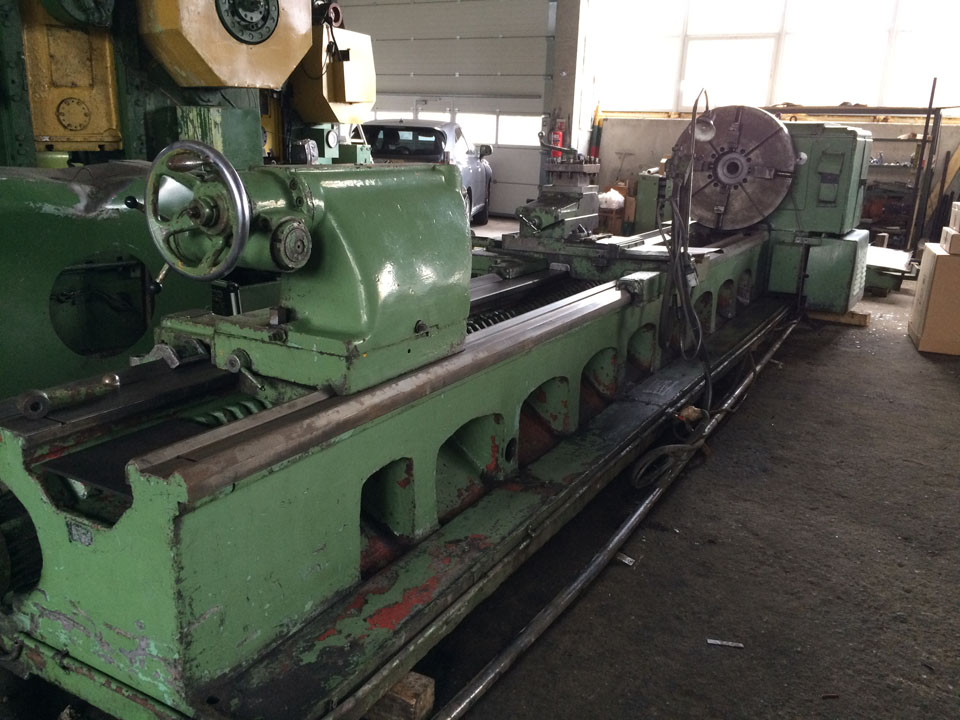

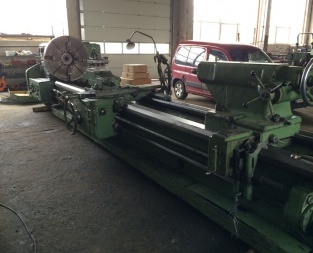

Universal screw-cutting lathe RYAZAN 1M65
Manufacturer: RYAZAN
Made in: Russia
Machine intended for performance of various turning works, including for turn of cones and a cutting of a groove: metric, modular and inch. The characteristics and rigidity of the machine tool allow to use completely opportunities of the fast-cutting and hardalloyed tool at processing black and nonferrous metals.
Specification:
Work-piece maximum diameter:
-Above bed: 1000 mm
-Above support: 600 mm
Work piece maximum length: 5000 mm
Diameter of a cylindrical aperture in a spindle (not less): 85 mm
The end of a spindle in accordance with GOST 12595-72: 1-15M
Cutting tool height: 50 mm
Amount of speeds of a spindle: 24
Spindle speed: 5-500 rpm
Feeds count: 32
Feeds:
-Line: 0,20-3,05 mm/rev
-Cross: 0,07-1,04 mm/rev
The greatest force of cutting supposed by the mechanism of submissions:
-Longitudinal: 1200 kg
-Transverse: 780 kg
Step of a cut groove:
-Metric: 1-120 mm
-Modular: 0,5-30 module
-Inch: 28-1.4 threads/inch
Work-piece maximum weight: 5000 kg
Machine overall dimensions:
-Length: 5825 mm, 8050 mm
-Width: 2100 mm
-Height: 1760 mm
Machine weight: 15600 kg
