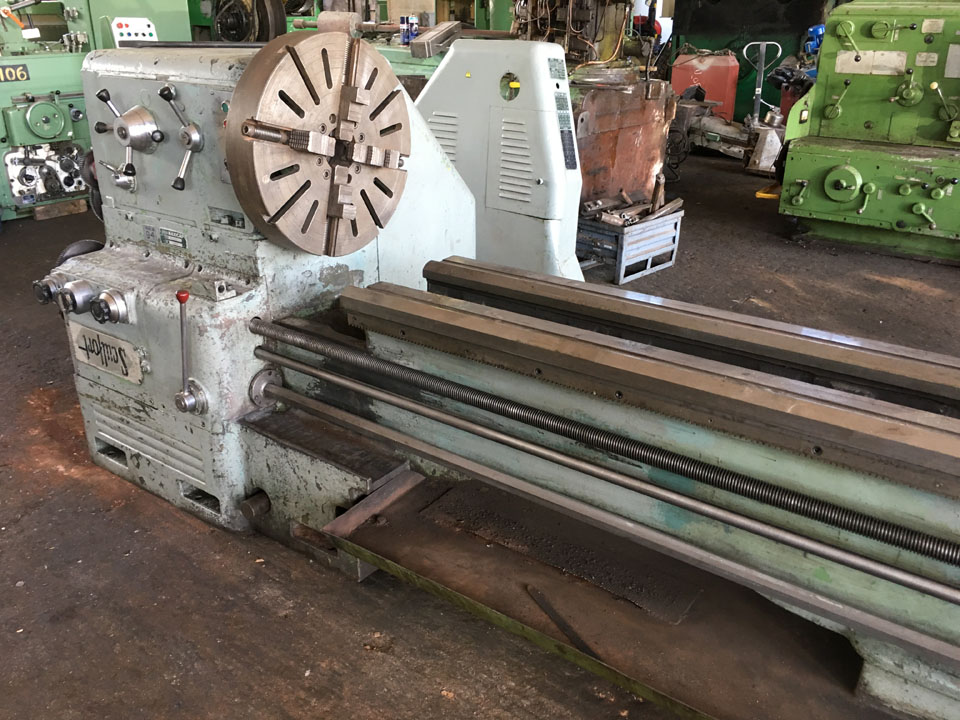

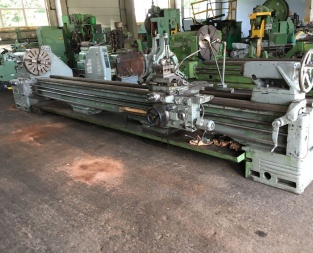

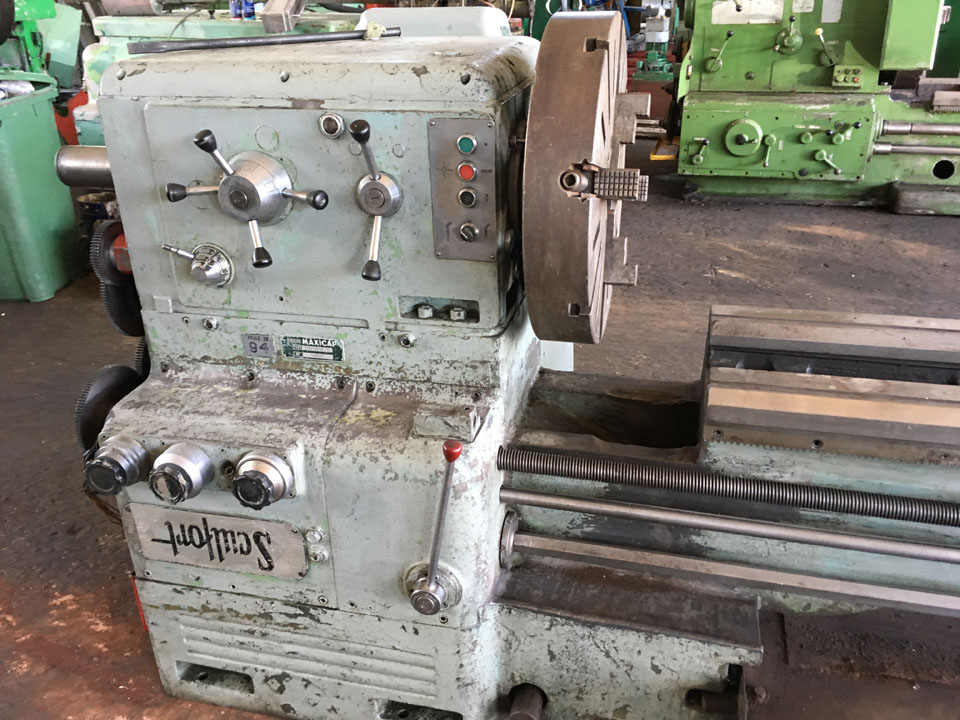

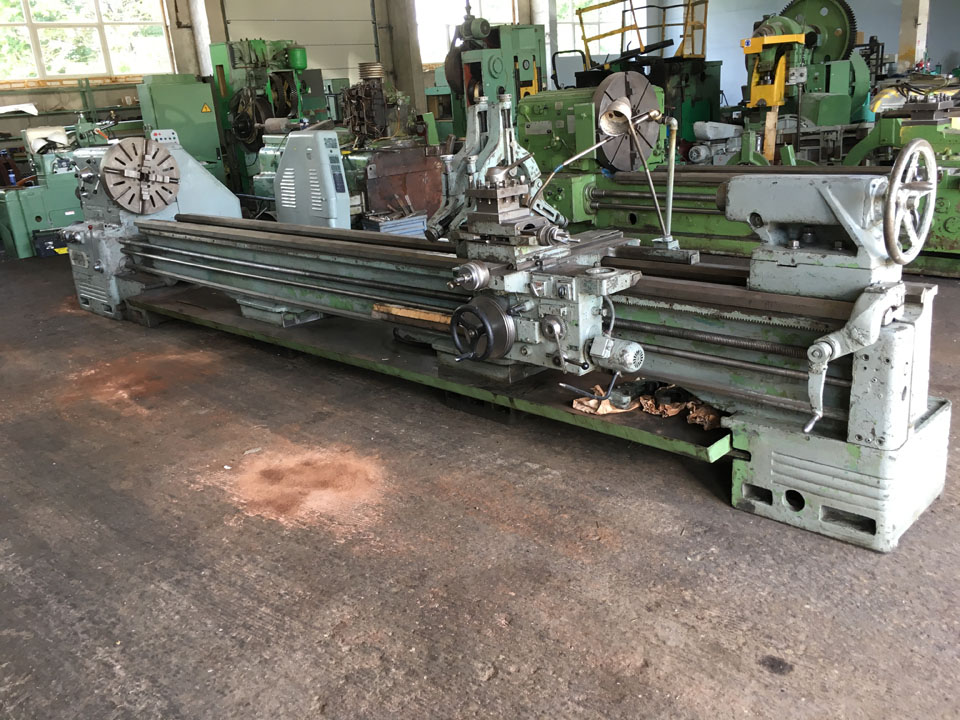

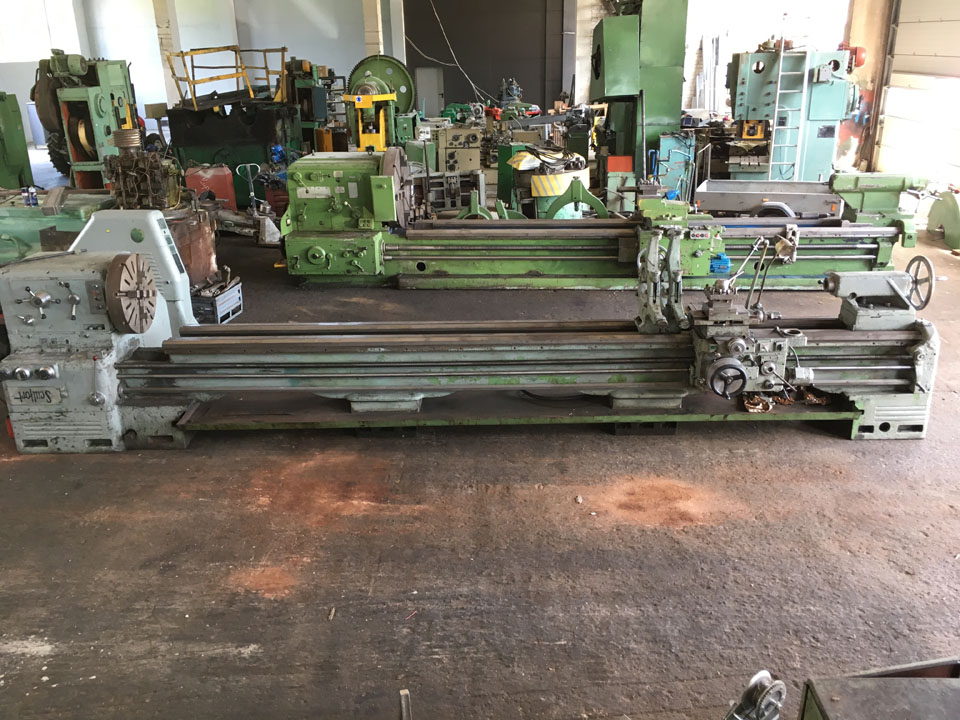

Universal lathe SCULFORT MAXICAP 315/5000 D

Offer #1638

Universal lathe SCULFORT MAXICAP 315/5000 D
Manufacturer: SCULFORT
Made in: France

Specification:

Work-piece maximum diameter:
 -Above bed: 635 mm
 -Above transversal support: 470 mm
 -Above carriage guides: 635 mm
Work-piece maximum length: 5000 mm
Max. diameter for grinding in a recess: 1000 mm
Total width of recess: 350 mm
Normal width before chuck with openings: 225 mm
Diameter of chuck with openings with 4 headstocks with pump: 1000 mm
Special width of chuck with openings (with halfbridge): 425 mm
Width of bed: 475 mm
Max. diameter above support with back toolholder: 420 mm
Max. diameter above support with device for reproduction: 420 mm
Dimensions: 7400x1400x1500 mm
Weight: 6470 kg
