Offer #2055

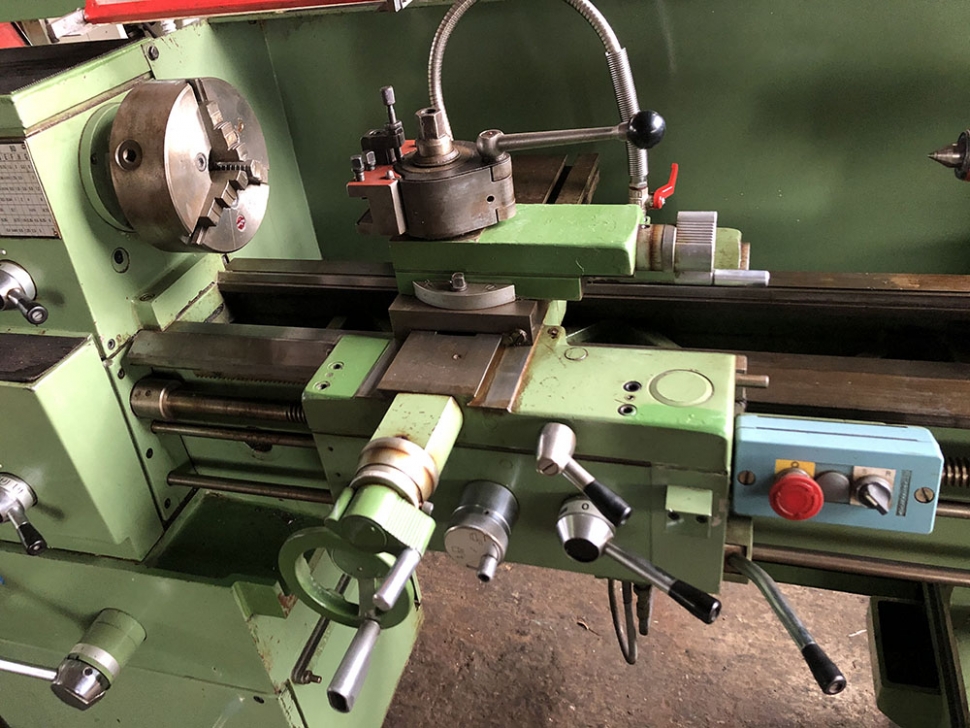

Universal horizontal lathe MONDIALE CELTIC 14NBC
Manufacturer: Mondiale
Made in: Belgium
Specification:
Centre height: 185 mm
Distance between centers: 750 mm
Turning diameter over bed: 365 mm
Number of spindle speeds: 16
Revolution range: 38-1600 or 24-1000 rpm
Spindle bore: 35 mm
Main spindle cone: Morse 5
Longitudinal feeds: 0,05-2,8 mm
Transversal feeds: 0,025-1,4 mm
Metric threads: 0,225-10 mm
Longitudinal travel of bed carriage: 720 mm
Max. longitudinal travel of work-piece carriage: 120 mm
Steel cross section: 20x20 mm
Pinole diameter: 48 mm
Max. adjustability: 110 mm
Bed length: 1595 mm
Machine length: 1755 mm
Machine weight: 815 kg
