Offer #1476

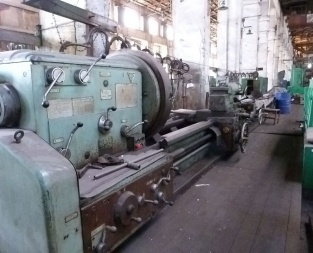

Screw-cutting lathe RYAZAN RT43401
YOM: 1979
Manufacturer: Ryazan Plant
Made in: Russia
Specification:
Max. work-piece diameter:
-Over bed: 1000 mm
-Over support: 600 mm
Max. work-piece length: 15000 mm
Center in the spindle: metrical 100
Spindle end according to GOST 12595-72: 1-15M
Diameter of the bar passing through the spindle opening: 80 mm
Height of the cutter in the toolholder: 50 mm
Number of spindle speeds: 24
Range of spindle rotation frequencies: 5-500 rpm
Number of feeds: 32
Range of feeds:
-Longitudinal: 0,20-3,05 mm/rev
-Transversal: 0,07-1,04 mm/rev
Max. cutting effort:
-Longitudinal: 1200 kg
-Transversal: 780 kg
Range of steps of the cut threads:
-Metrical: 1-120 mm
-Modular: 0,5-30 module
-Inch: 28-0,2 threads per inch
