Offer #1325

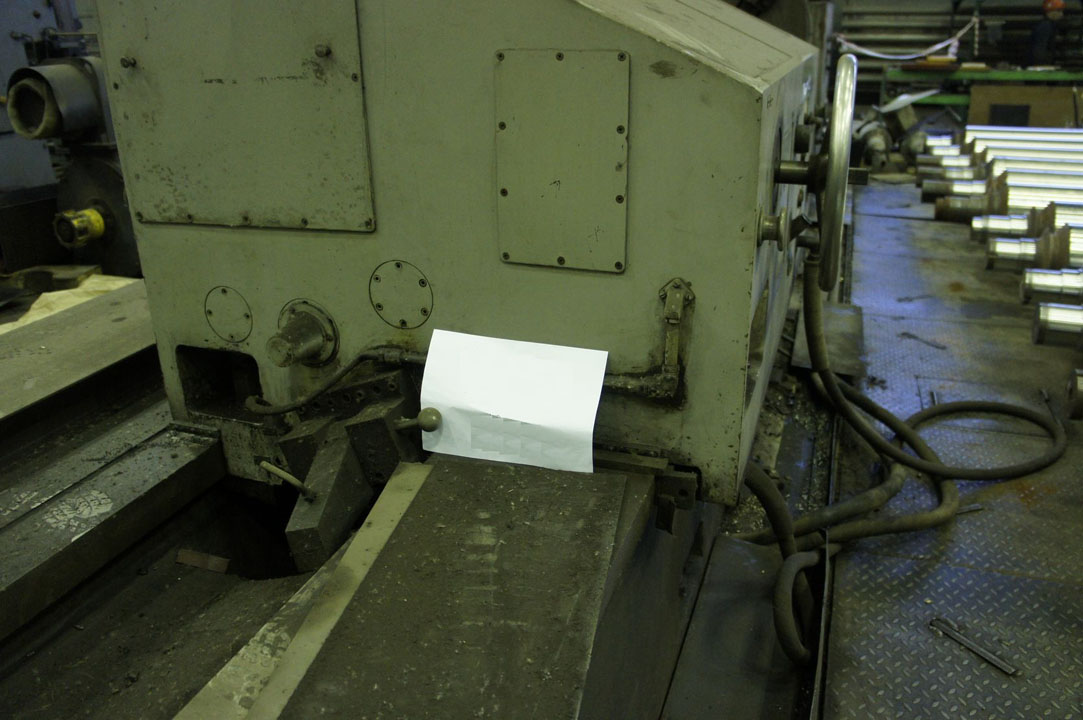

Horizontal lathe KRAMATORSK 1A825103F2
YOM: 1992
Manufacturer: KRAMATORSK
Made in: Russia
Intended for processing of rolls work-pieces of rolling mills of papermaking and other machines at machine-building plants.
Specification:
Max. work-piece diameter: 1000 mm
Min. work-piece diameter: 180 mm
Max. work-piece length: 6000 mm
Max. diameter of a work-piece processed over support: 1050 mm
Max. length of processed rolls: 6300 mm
Max. work-piece weight in centers: 25000 kg
Spindle rotation: 0,9-50 rpm
Main drive electric motor power: 75 kW
Max. spindle torque: 90 kgm
Feeds:
-Longitudinal: 0,03-76 mm
-Transversal: 0,02-30 mm
Cutter height: 65 mm
Diameter of the rotating center: 100 mm
Diameters of necks covered by the lunette: 900-600 mm
Machine weight: 55000 kg
