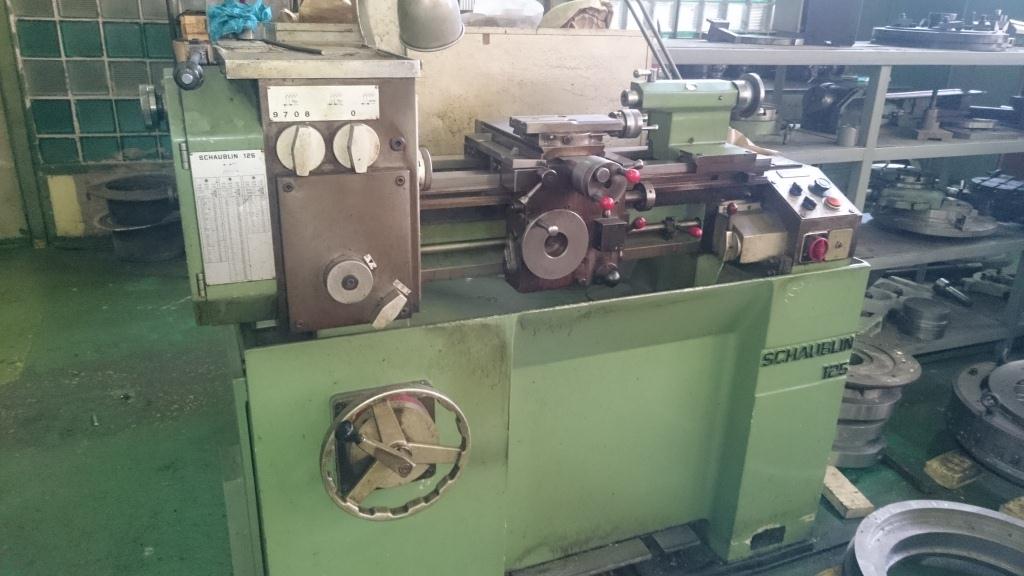

High-precision turning and screwcutting lathe SCHAUBLIN 125

Offer #1349

High-precision turning and screwcutting lathe SCHAUBLIN 125
Serial Number: 237760
Manufacturer: Schaublin SA
Made in: Switzerland

Specification:

Max. swing over bed: 270 mm
Swing over cross-slide: 52 mm
Swing over carriage: 120 mm
Centre height: 125 mm
Distance between centres: 500 mm
Tool section: 16x16 mm
Headstock spindle nose: Camlock D 1-3"
Collet type: B 32
Spindle hole: 28 mm
Spindle motor: 2,30 HP
Spindle speeds, stepless:
 -From: 200 rpm
 -Up to: 3000 rpm
Spindle speeds, stepless (with reduction gear):
 -From: 40 rpm
 -Up to: 3000 rpm
Pitch of leadscrew: 4 mm
Taper in tailstock: 3 MT
Longitudinal and transverse power feeds: 4-260 mm/min
Feeds:
 -Length: 0,250-8,00 mm/r
 -Frontal: 0,250-8,00 mm/r
Voltage: 50 Hz, 3x380 Volt
Power of motor: 1,85 kW
Overall dimensions:
 -Length: 1500 mm
 -Width: 730 mm
 -Height: 1280 mm
Net weight: 950 kg
