Offer #1229

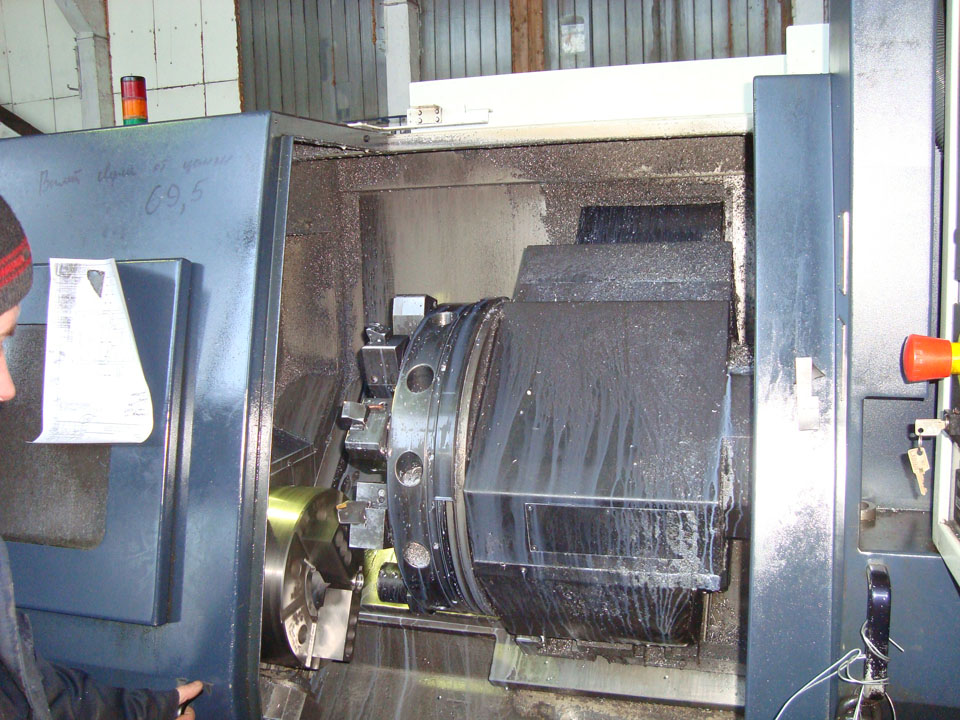

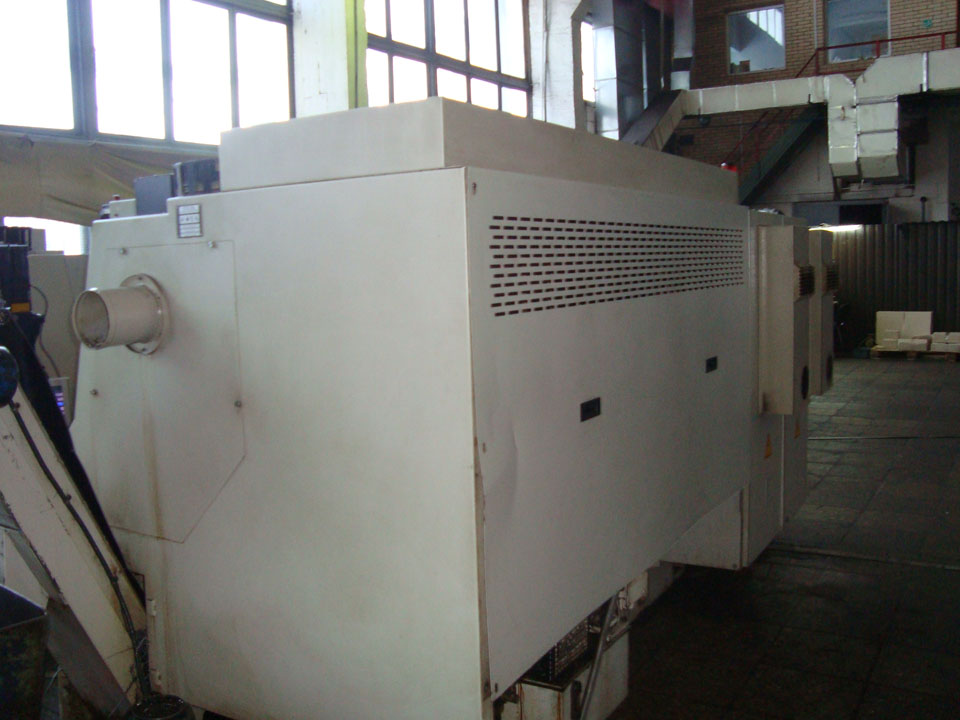

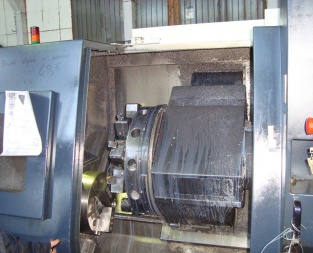

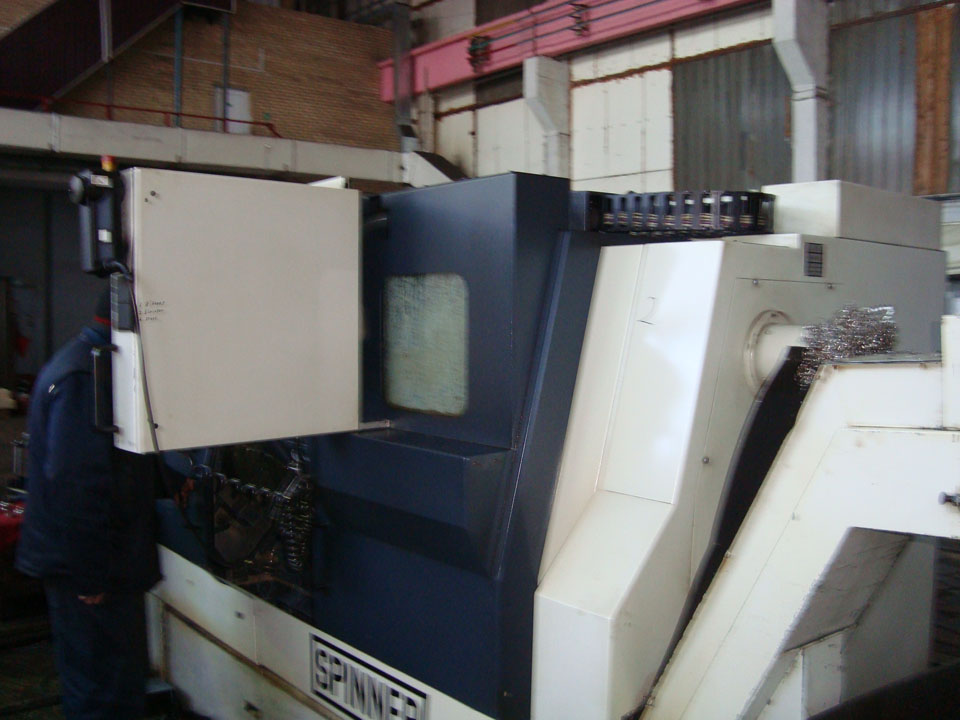

CNC Universal lathe SPINNER Type TC 82-MC
YOM: 2003
Manufacturer: SPINNER Werkzeugmaschinenfabrik GmbH
Made in: Germany
Specification:

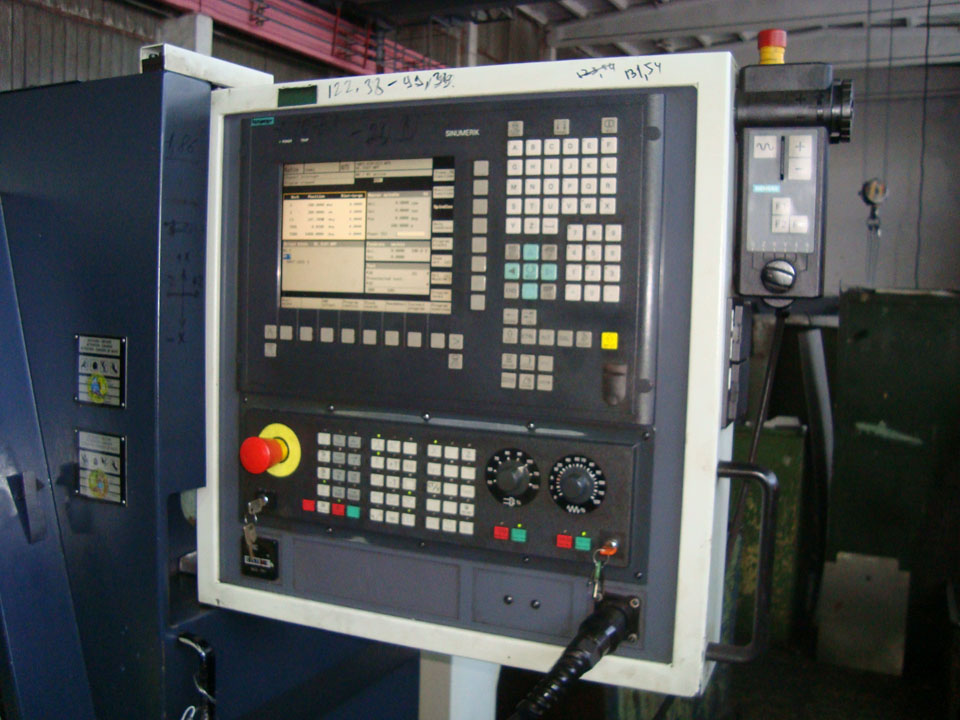

CNC Control: SIEMENS 840
Working hours: 41716
Turning diameter over slide: 400 mm
Turning length: 1090 mm
Spindle passage: 82 mm
Chucking diameter: 250 mm
Turning speed: 3750 U/min
Bar capacity: 77 mm
X-axis travel: 296 mm
Centre distance: 1100 mm
Rapid traverse X-axis: 15 m/min
Rapid traverse Z-axis: 20 m/min
Tailstock quill diameter: 110 mm
Number of tools: 12
Coolant tank: 130 l
Total power requirement: 50 kW
Weight of the machine ca.: 5,5 t
Dimensions of the machine ca.: 3750x1550x1900 mm
