CNC Universal lathe GILDEMEISTER NEF 400

  • More pictures
  • Videos
  • Print

Offer #4960

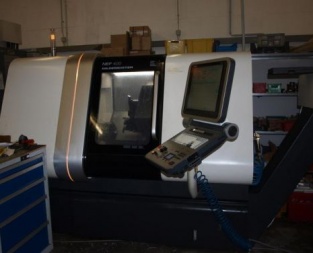

Universal lathe GILDEMEISTER NEF 400
YOM: 2010
Control: Heidenhain CNC - Pilot 4290
Made in: Germany

Perfect working condition.

Specification:

Working hours: 1600
Number of tools in magazine: 12
Working area:
 -Max swing diameter over bed: 385 mm
 -Max turning diameter over bed: 350 mm
 -Max turning diameter over cross slide: 350 mm
 -Cros travel (X): 255 mm
 -Longitudinal travel (Z): 800 mm
Main spindle:
 -Spindle head: 170 h5 Size
 -Spindle bore: 87 mm
 -Bar capacity (for power chuck): 65 mm
 -Diameter in the front bearing: 130 mm
 -Chuck diameter: 200 mm
 -Drive output (40/100 % DC): 11.5 kW
 -Speed range: 0-4500 rpm
Machine dimensions (LxH): 4165x2272 mm
Machine weight: 3700 kg
