Offer #1893

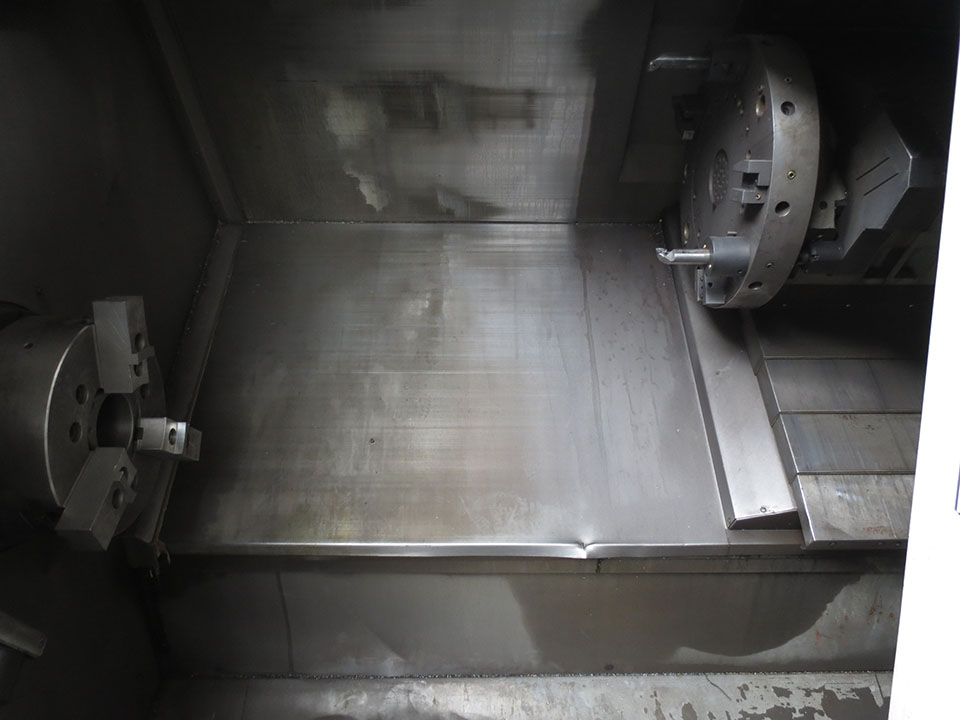

CNC Lathe HAAS SL40HE
YOM: 2006
Manufacturer: HAAS
Made in: USA
Specification:
Transversal stroke on X-axis: 432 mm
Longitudinal stroke on Z-axis: 1118 mm
Max. work-piece diameter: 648 mm
Max. distance between centers: 648 mm
3-cam jaw: 381 mm
Spindle opening: 102 mm
Max. diameter above sledge: 635 mm
Spindle rotation: 2400 rpm
Max. torque at 150 rpm: 1898 Nm
Max. spindle power: 30 kW
Spindle taper: 8 A2
Max. torque of X/Y axles drive: 17/27 Nm
Max. speed of stroke on X, Y: 18000 mm/min
Number of tool positions: 10
Tool change time: 1 sec
Accuracy of positioning: +/-0,0051 mm
Repeatability: +/-0,0025 mm
Voltage: 380 V, 50 Hz
Cooling tank volume: 189 l
Air pressure: 6,9 bar
Air output: 113 l/min
Machine weight: 11340 kg
