Offer #1892

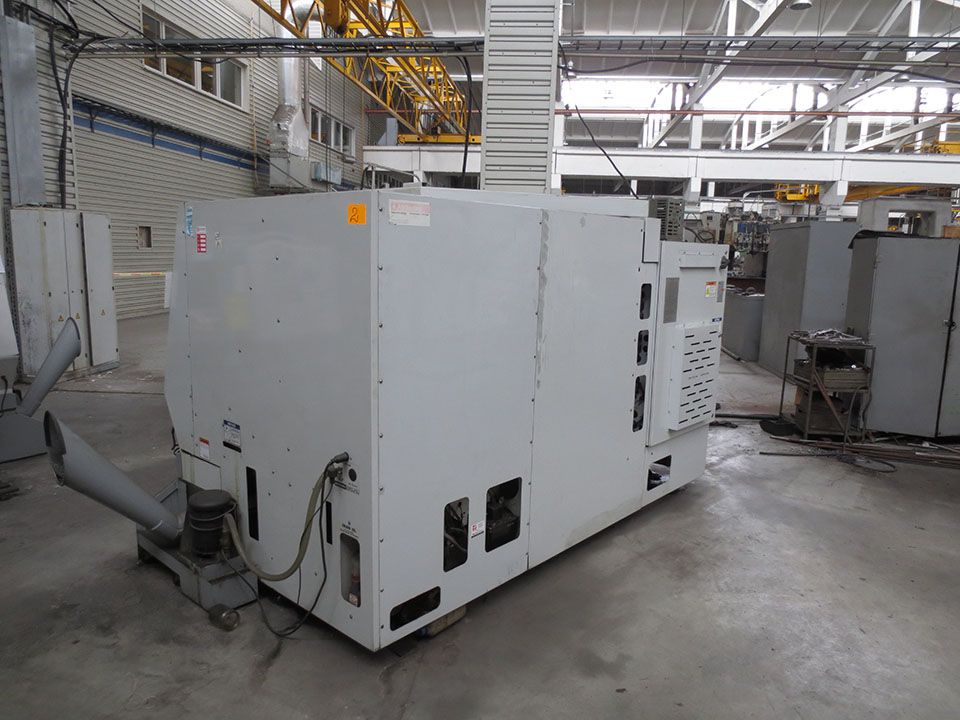

CNC Lathe HAAS SL30THE
YOM: 2006
Manufacturer: HAAS
Made in: USA
Specification:
Transversal stroke on X-axis: 287 mm
Longitudinal stroke on Z-axis: 864 mm
Max. work-piece diameter: 432 mm
Max. distance between centers: 991 mm
3-cam jaw: 254 mm
Spindle opening: 76 mm
Max. diameter above sledge: 368 mm
Spindle rotation: 3400 rpm
Max. torque at 700 rpm: 407 Nm
Max. spindle power: 22 kW
Spindle taper: 6 A2
Max. power of axis drive: 3,73 kW
Max. torque of X/Y axles drive: 17/27 Nm
Max. speed of stroke on X, Z: 18000 mm/min
Number of tool positions: 12
Tool change time: 1 sec
Live tooling
Accuracy of positioning: +/-0,0051 mm
Repeatability: +/-0,0025 mm
Air pressure: 6,9 bar
Air output: 113 l/min
Voltage: 380 V, 50 Hz
Machine weight: 7258 kg
