Offer #1891

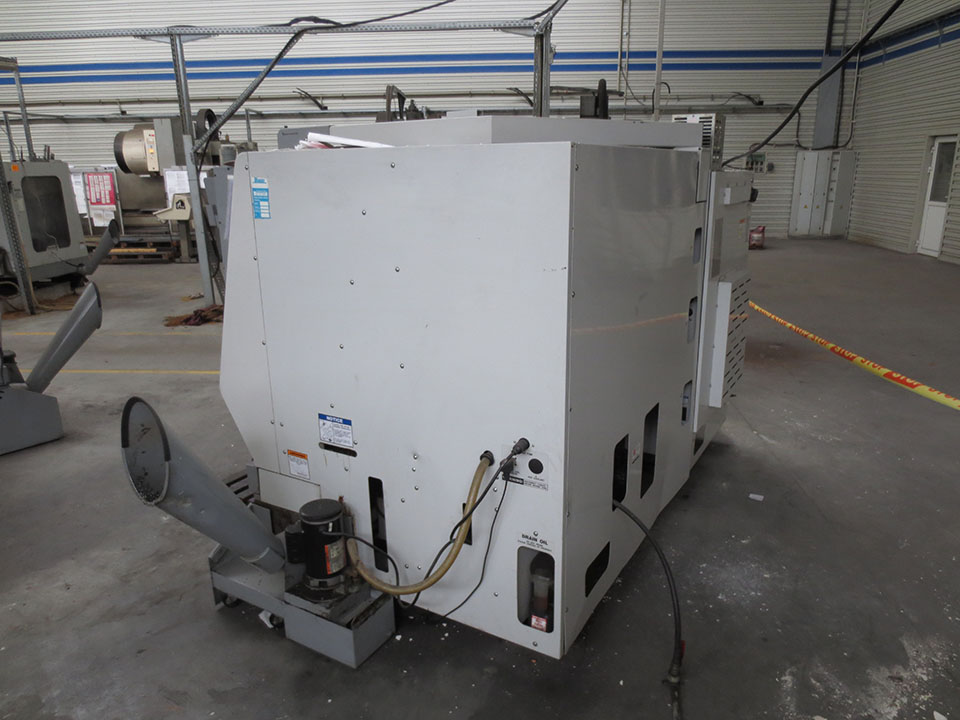

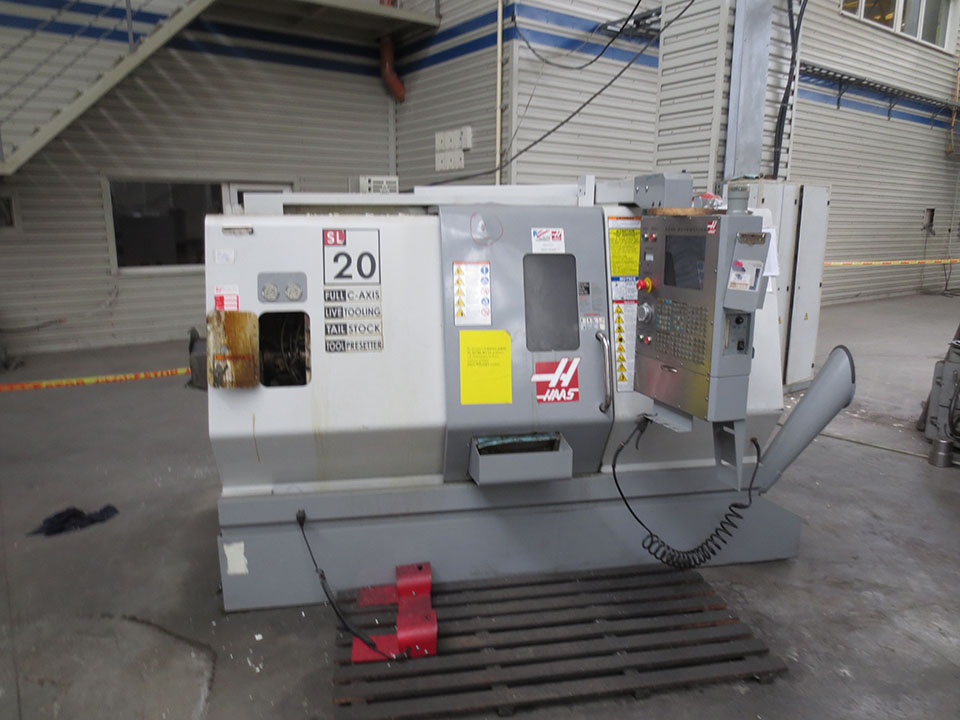

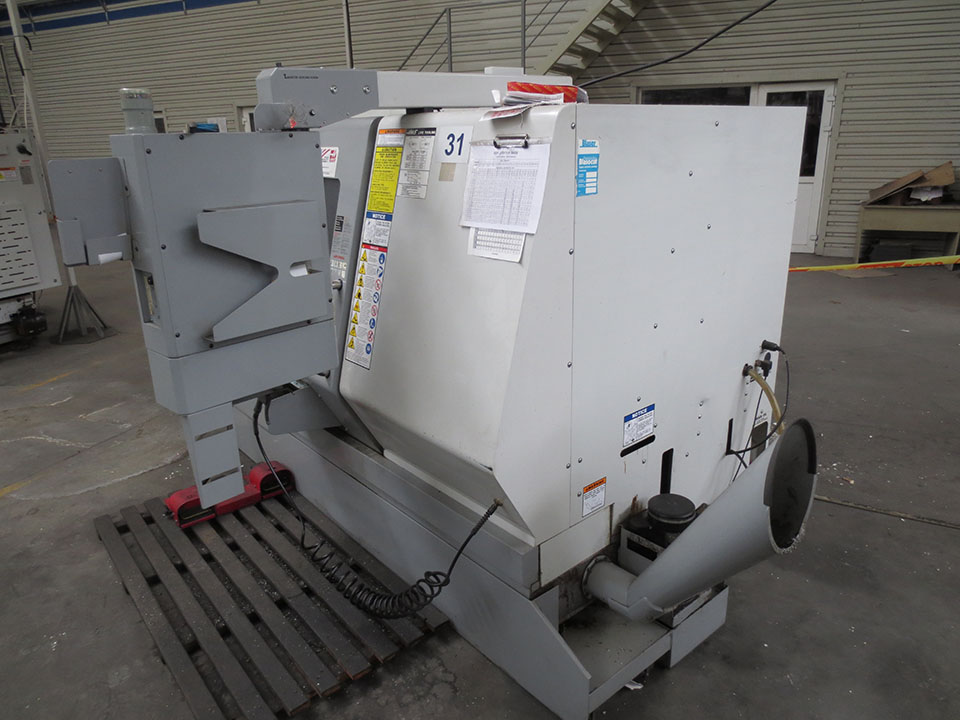

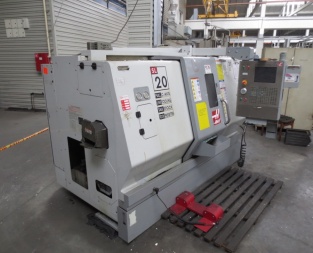

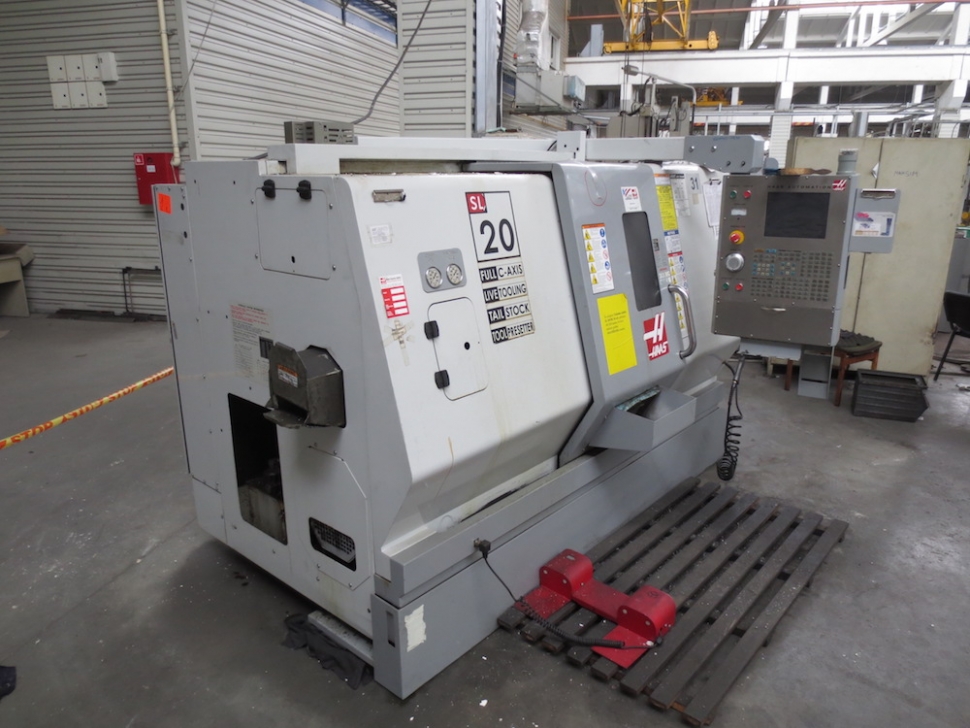

CNC Lathe HAAS SL20THE
YOM: 2006
Manufacturer: HAAS
Made in: USA
Specification:
Transversal stroke on X-axis: 215 mm
Longitudinal stroke on Z-axis: 508 mm
Max. processed diameter: 262 mm
Max. processed length: 508 mm
Max. distance between centers: 610 mm
3-cam jaw: 210 mm
Spindle opening: 51 mm
Spindle rotation: 4000 rpm
Max. torque at 650 rpm: 209 Nm
Max. spindle power: 15 kW
Spindle taper: 6 A2
Max.working power of X/Y axles drive: 15124 N
Max. speed of stroke on X, Y: 18000 mm/min
Number of tool positions: 10
Tool change time: 1 sec
Life tooling
Accuracy of positioning: +/-0,0051 mm
Repeatability: +/-0,0025 mm
Voltage: 400 V, 60 Hz
Cooling tank volume: 151 l
Air pressure: 6,9 bar
Air output: 113 l/min
Machine weight: 4082 kg
