Offer #1628

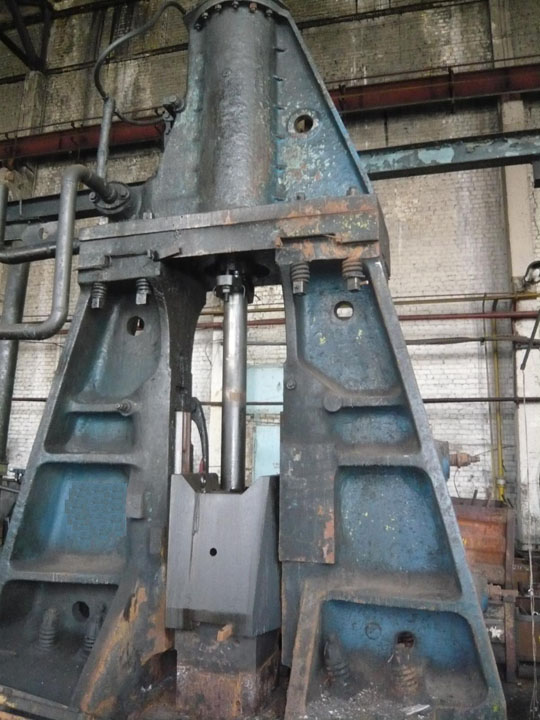

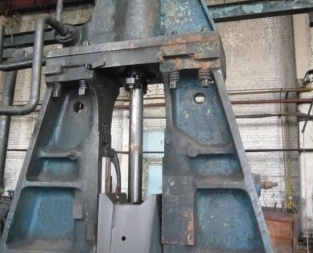

Air drop forging hammer mod. M212
Made in: Russia
In 2009 the casing, the sleeves, the slide, headstock and die-holder as well as the grinding of headstock guides and the valve of hammer control were replaced. In 2010 it has been stopped due to changes of technological process i.e. the hammer after overhaul on mechanics.
Specification:
Nominal mass of drop parts: 2000 kg
Impact energy: 50 kJ
Max. number of blows per minute: 70
Max. ram stroke: 1200 mm
Distance clear between guides: 600 mm
Ram front-to-back dimensions: 670 mm
Die-holder front-to-back dimensions: 900 mm
Bottom die impression-to-floor distance: 840 mm
Minimum die holder-to-ram distance: 260 mm
Steam (air) pressure:
-Inlet: 6-8 Mpa
-Exhaust: 0,2-0,5 Mpa
Overall dimension: 2950x1660 mm
Height above floor level: 5310 mm
Mass (less anvil block): 18,31 tons
Mass of anvil block: 40 tons
