Offer #1658

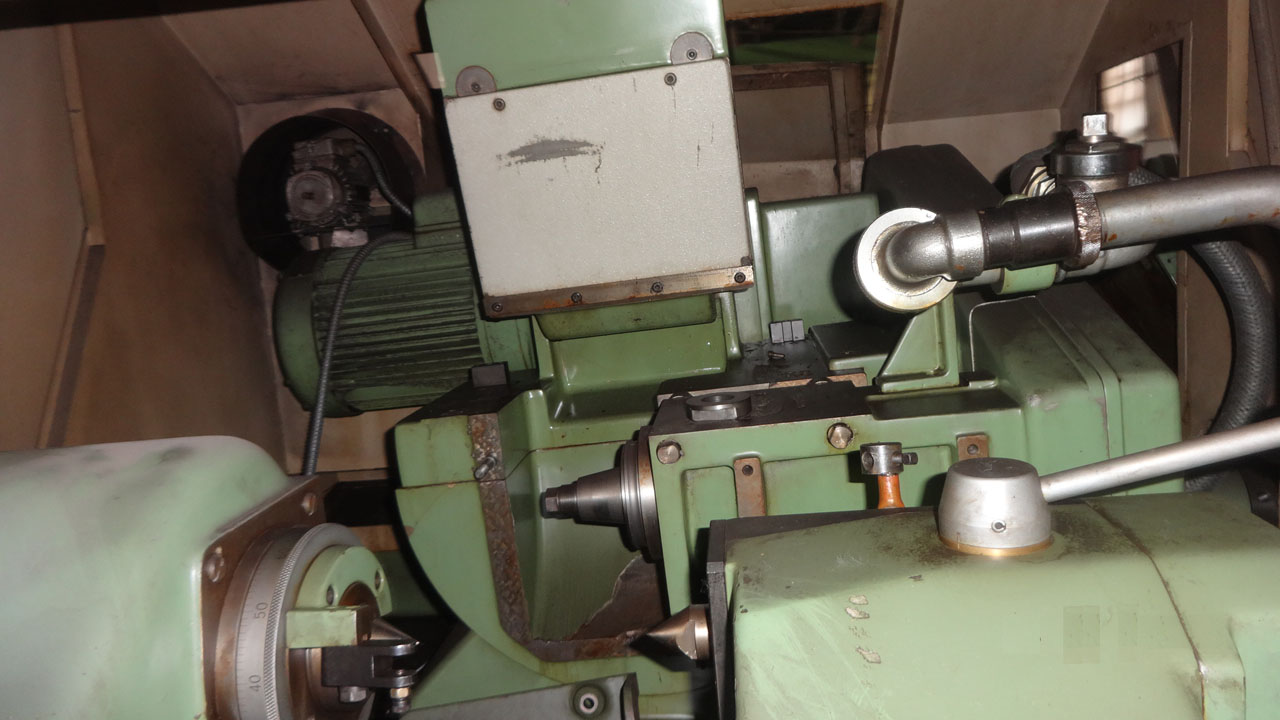

Thread grinding machine REISHAUER US
YOM: 1980
Manufacturer: Reishauer AG
Made in: Switzerland
Specification:
Grinding length: 450 mm
Distance between centers: 870 mm
Diameter of the part:
-Min.: 2-4 mm
-Max.: 250 mm
Max. part weight: 50 kg
Max. orientation angle: 40 degrees
Grinding wheel:
-Min.: 275 mm
-Max.: 350 mm
Ceramic/organic grinding wheel boring: 160/230 mm
Grinding/rolling wheel speed: 1700-2540/72 rpm
Parts-holder spindle speeds number: 27
Parts-holder spindle speed: 0,4-160 rpm
Parts-holder spindle boring: 45 mm
Dimensions:
-Height: 1700 mm
-Width: 3500 mm
-Length: 1855 mm
Weight: 4850 kg
