Offer #1645

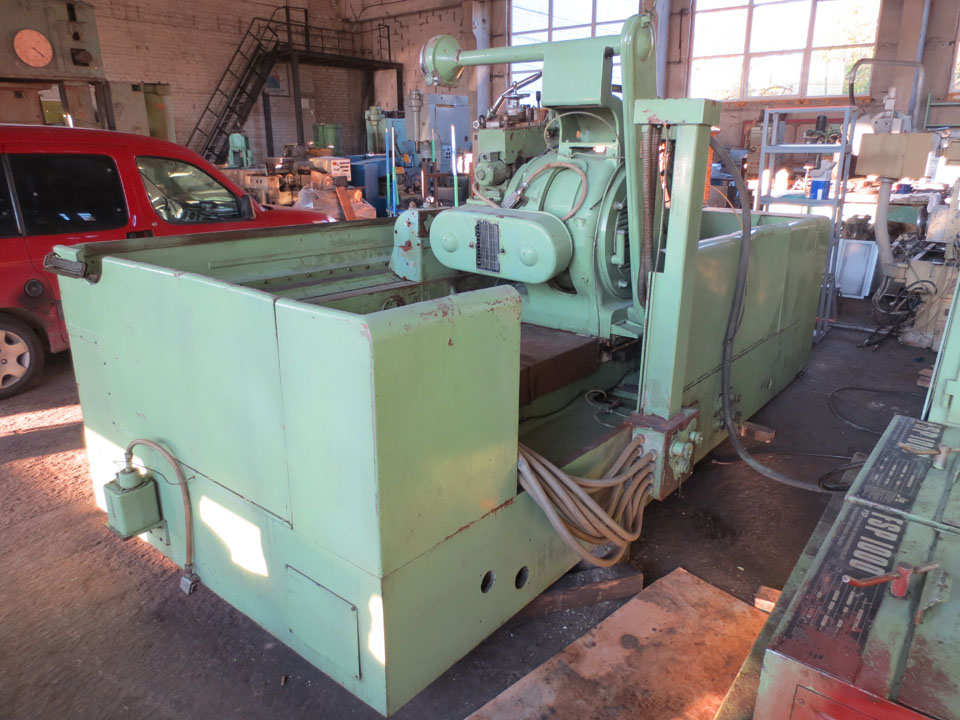

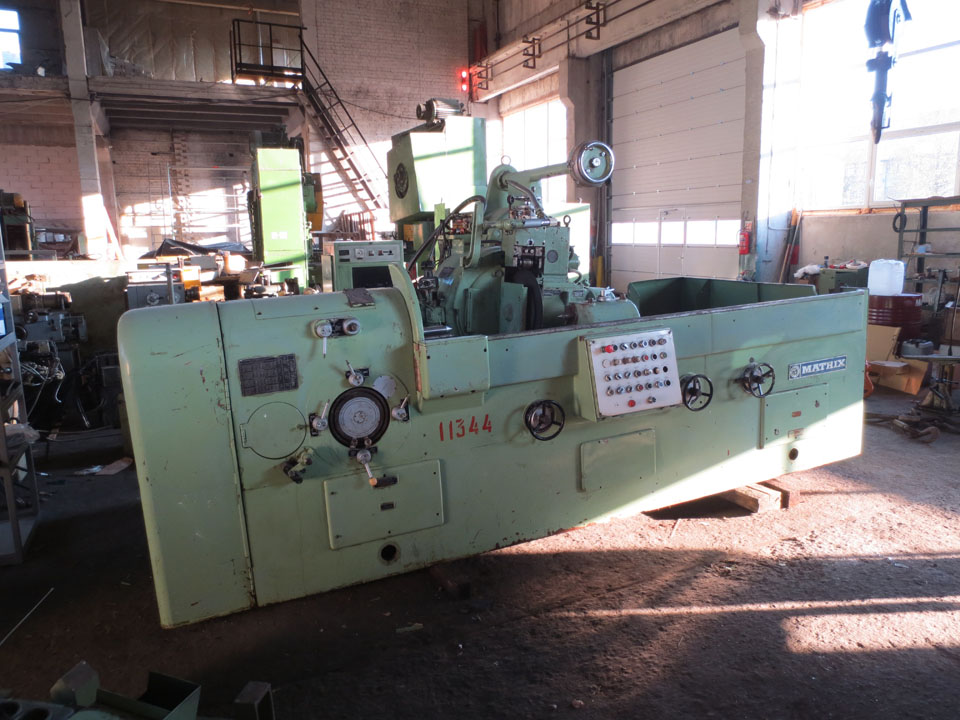

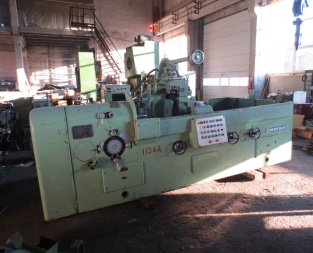

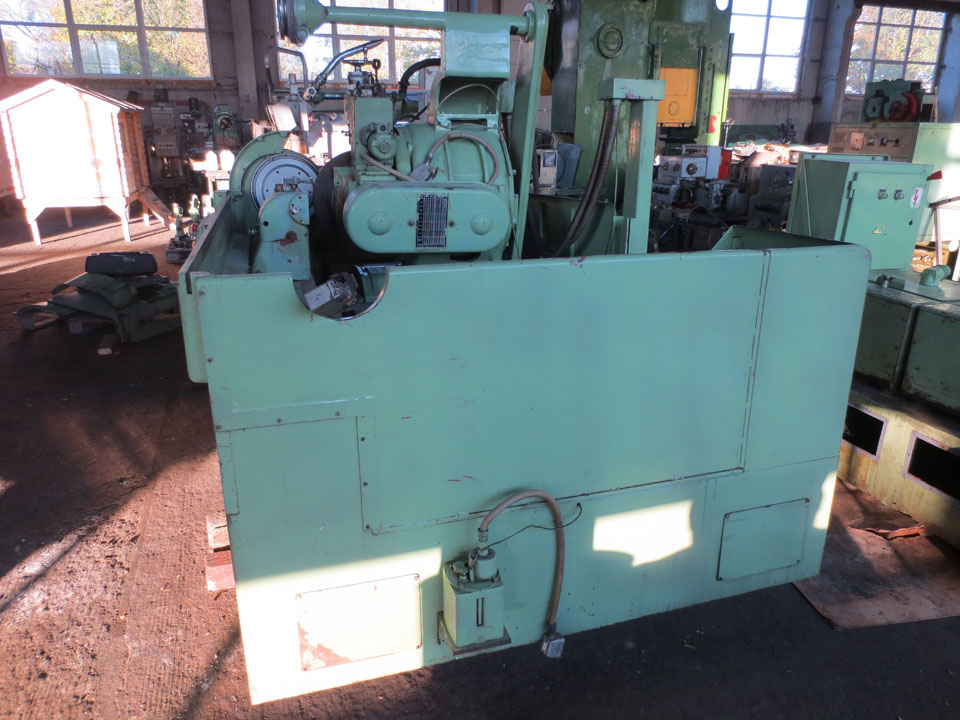

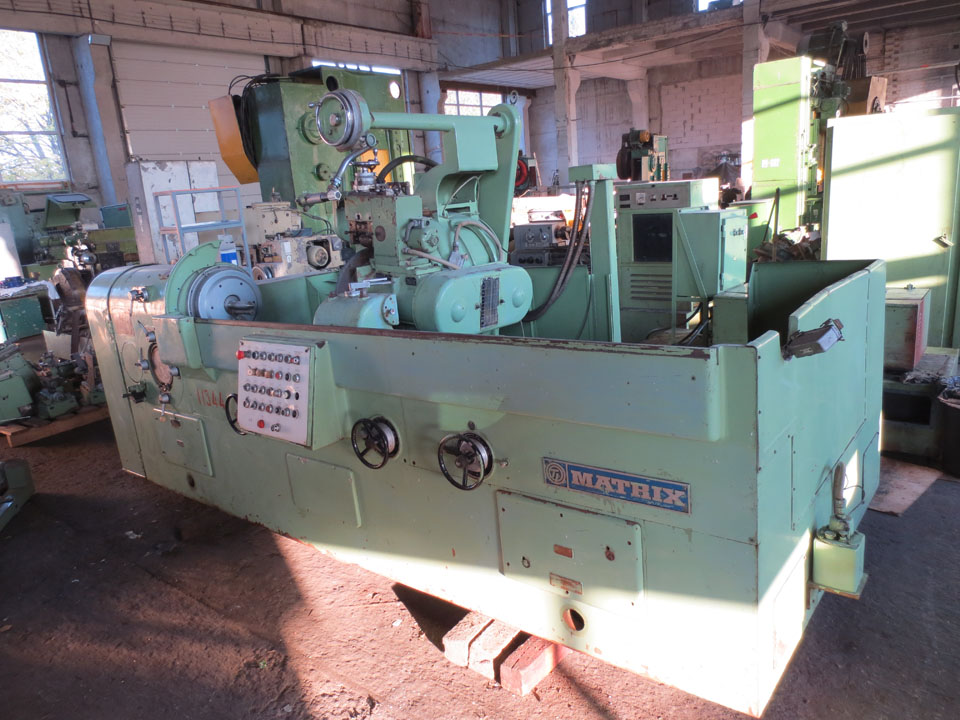

Thread grinding machine MATRIX 71
Manufacturer: Matrix
Made in: England
Specification:
Distance between centers: 2286 mm
Max. grinding length without changing settings: 1778 mm
Inner diameter of spindle headstock: 152,4 mm
Max. grinding diameter at 50,8 cm diameter of grinding wheel: 266,7 mm
Grinding spindle speed: 1000-2000 rpm
Angle of grinding headstock from the vertical: 43 degress (from left), 45 degress (from right)
Width range of the wheel: 12,7х76,2 mm
Range of module: 1,27-152,4 mm
Reverse speeds: 3,1; 12,5 and 50 rpm
Max. grinding headstock travel: 1770 mm
Dimensions:
-Length: 4445 mm
-Width: 1755 mm
-Height: 1855 mm
Weight: 9144 kg
