Offer #1314

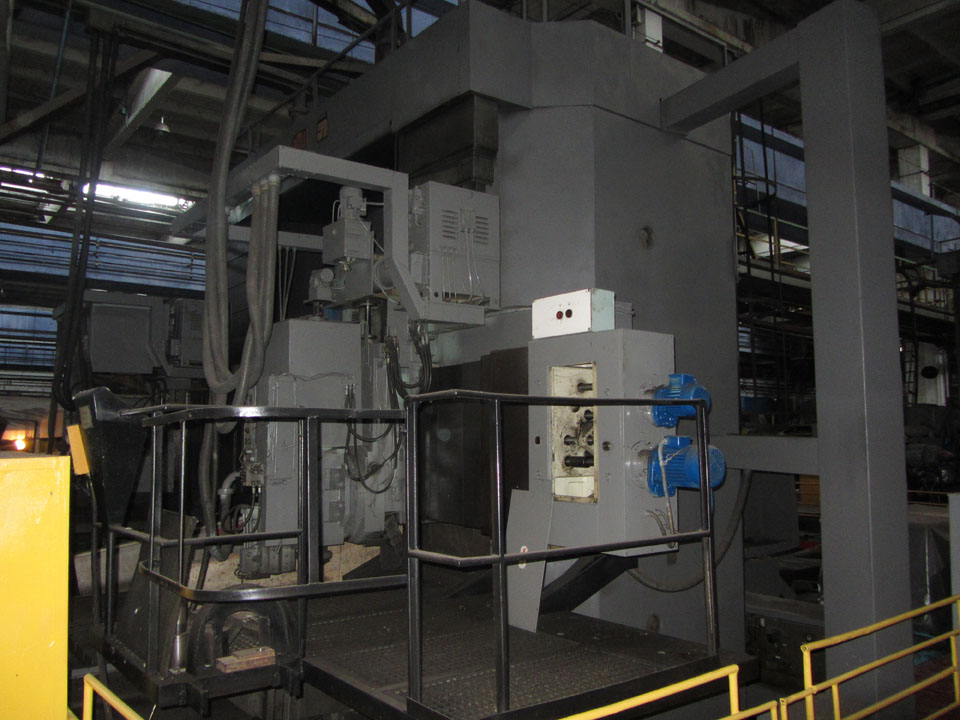

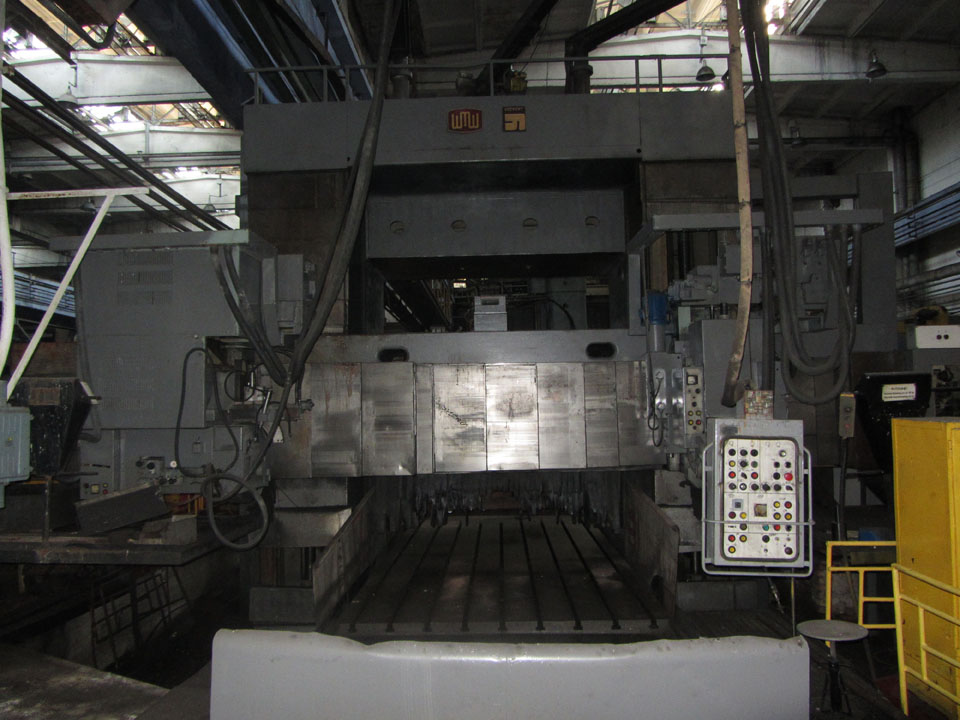

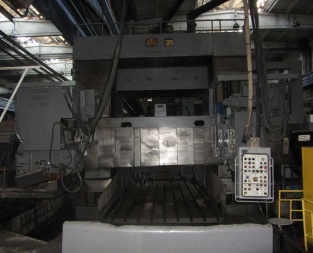

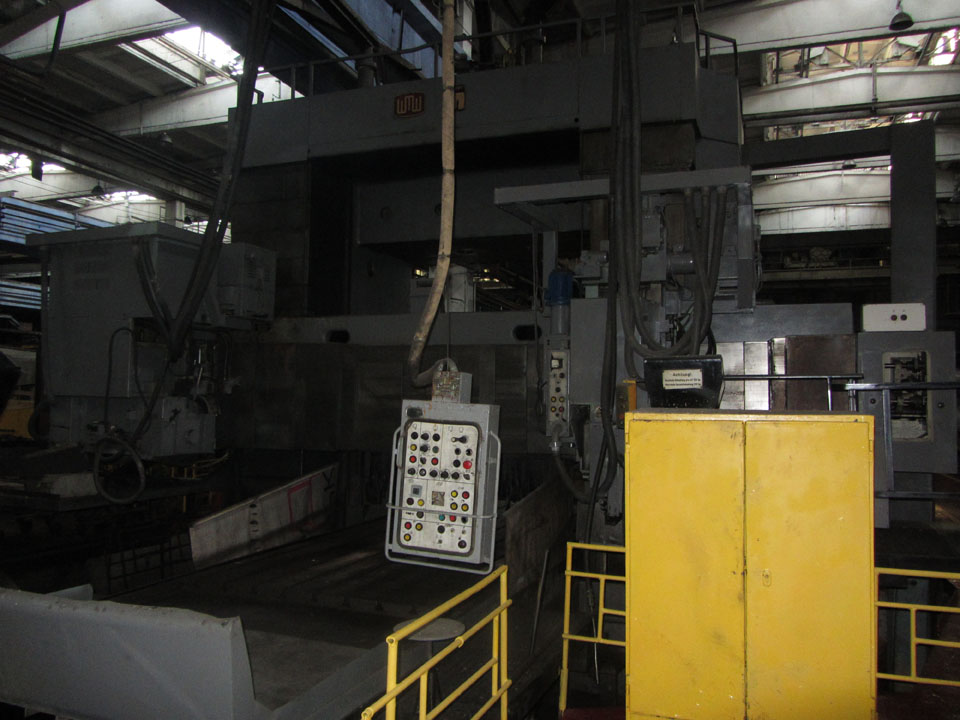

Slideway grinder HECKERT SZ 2200x1800x5000/5
Manufacturer: WMW
Made in: Germany
Machine is complete, in working condition.
Specification:
Width of processing: 2200 mm
Length of processing: 5000 mm
Table width: 2240 mm
Working area (length of processing): 2240 mm
Max. table load: 2,5 t/m
Energy requirement for table drive:
-At 4-6 m length of processing: 30 kW
-At 8-12 m length of processing: 40 kW
Table travel speed:
-At 4-6 m length of processing: 2-50 m/min
-At 8-10 m length of processing and max. table load: 2-30 m/min
-At 60% load of max. load: 2-45 m/min
Table T-slots:
-Number: 9
-Distance: 250 mm
Grinding width: 3200 mm
Grinding height: 1800 mm
Grinding length: 5000 mm
Max. width of passage between columns: 2680 mm
Max. height of passage: 1925 mm
Height from plant floor to the upper table edge: 1075 mm
Overall length: 16450 mm
Overall width: 8960 mm
Overall height: 6520 mm
Weight: approx. 115 tons
