Offer #2090

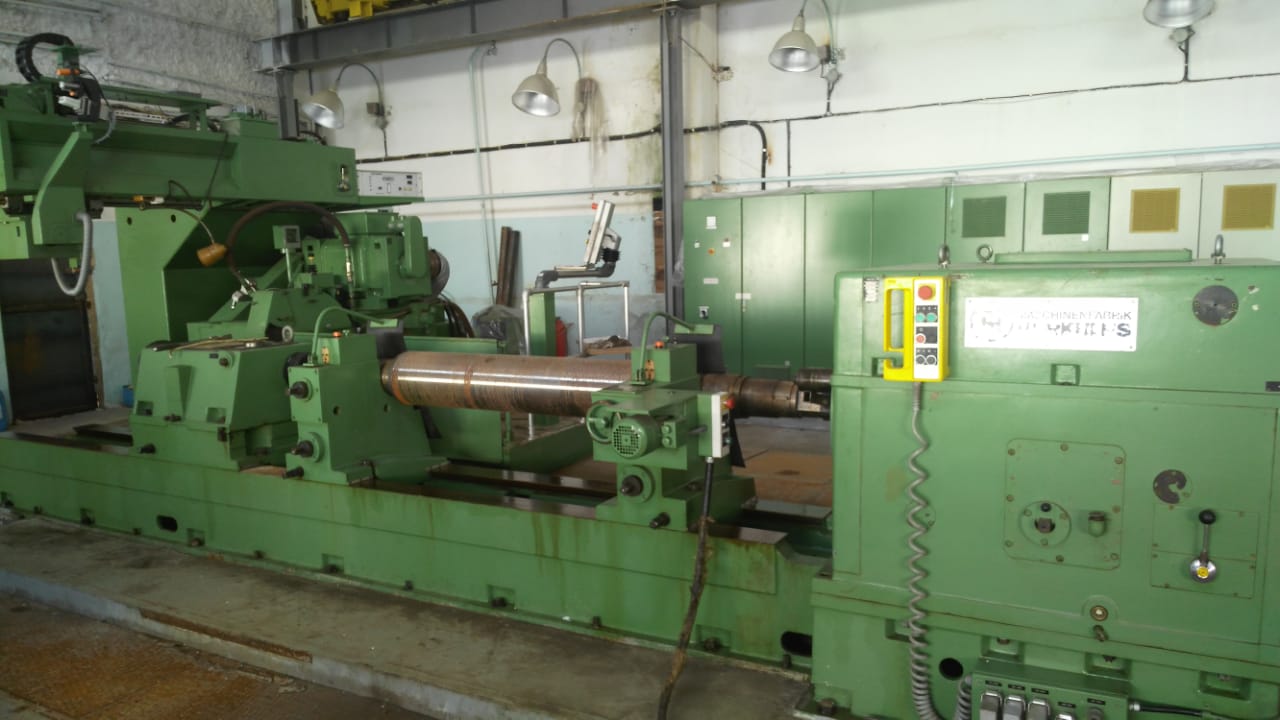

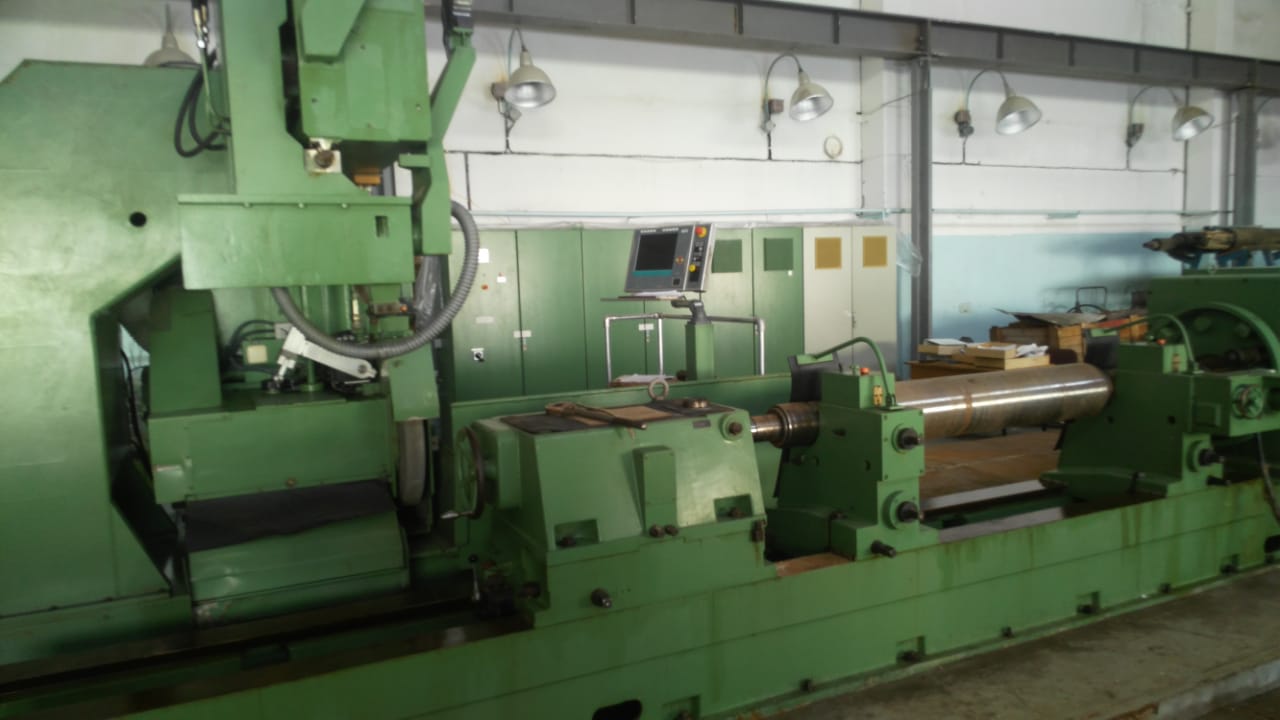

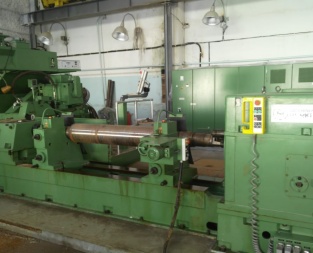

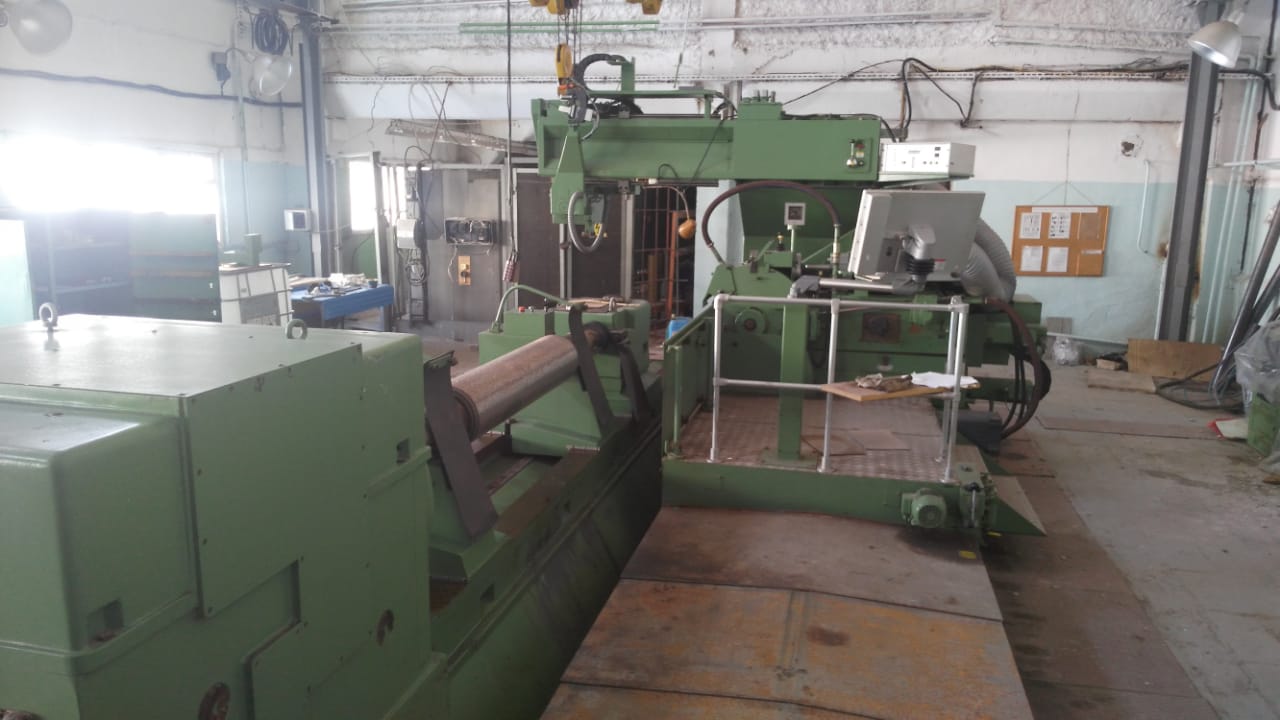

CNC Roll grinding machine HERKULES WS 450-12 x 4000
YOM: 2002
Manufacturer: Maschinenfabrik Herkules
Manufacturer: Maschinenfabrik Herkules
Made in: Germany
Specification:
Grinding length: 4000 mm
Max. grinding diameter: 1000 mm
Min. grinding diameter: 0 mm
Grinding support path (X-axis): 525 mm
Distance between centers: 4000 mm
Max. work-piece bed weight: 6-12 tons
Grinding wheel:
-Max. size: 750 x 304,8 mm
-Wheel width: 75 mm
-Max. cutting length: 45 m/sec
-Drive power: 40 kW
Total area: 13 x 5,5 m2
Automatic grinding support feed (C-axis) at reverse: 0,001-0,009 mm
Water tank volume: 5000 l
Total power requirement: 100 kW
