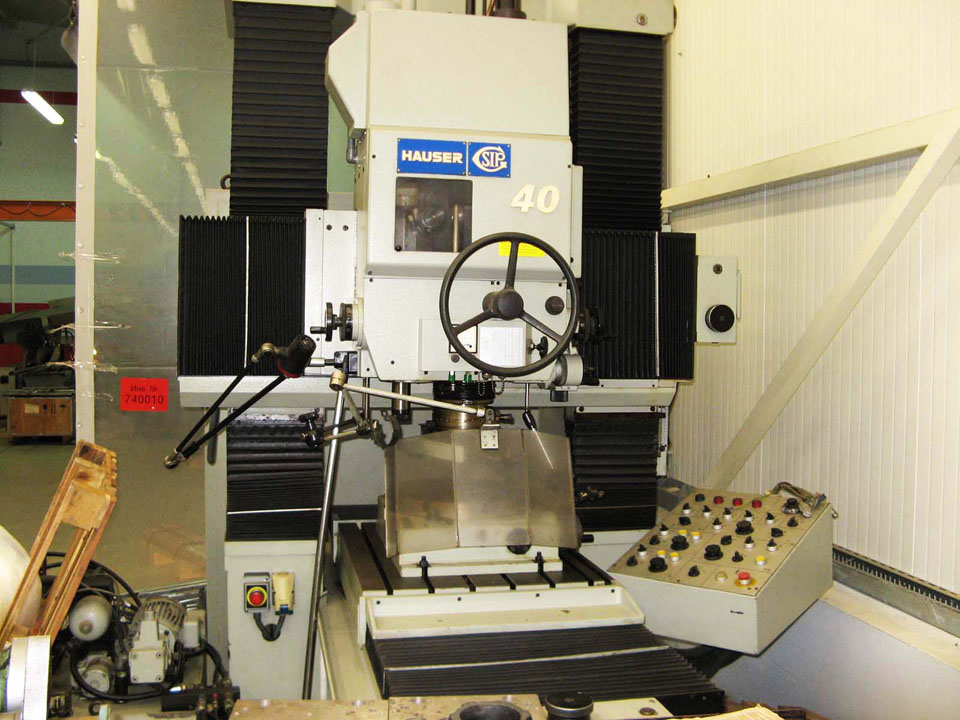

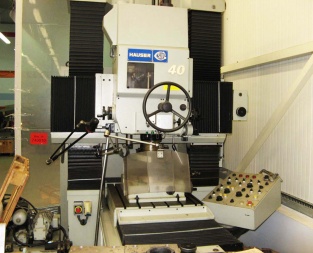

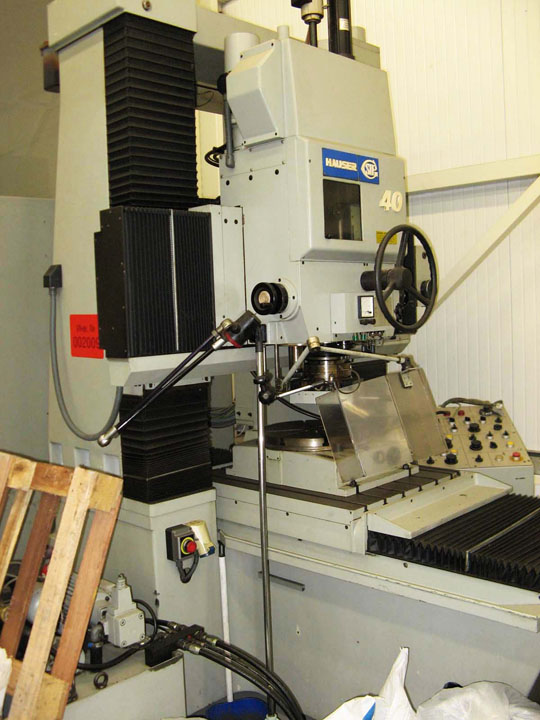

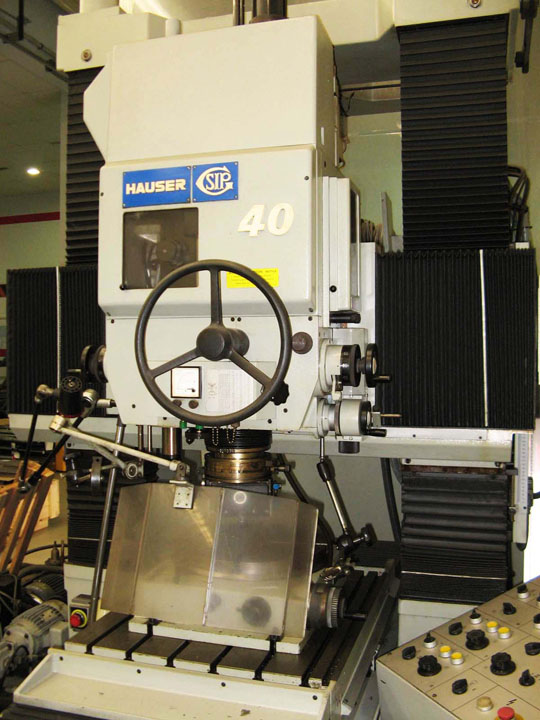

Jig grinding machine HAUSER S40DR

Offer #876

Jig grinding machine HAUSER S40DR
YOM: 1992
Manufacturer: Hauser
Made in: Switzerland

It was located in millitary factory and almost not used. Perfect condition.

Specification:

Table length: 770 mm
Table width: 630 mm
Travel:
 -Longitudinal X: 650 mm
 -Cross Y: 450 mm
 -Crossrail W: 500 mm
Distance from spindle center to vertical slide: 600 mm
Max. grinding diameter:
 -Regular: 230 mm
 -With display plate: 360 mm
Distance between columns: 750 mm
Max. angle with taper grinding: up to 16 degrees
Max. load on the table: 500 kg
Stroke length Z, infinitely adjustable: 0-140 mm
Planetary speed: 5-250 U/min
Grinding spindle speeds:
 -Min.: 4500 rpm
 -Max.: 80000 rpm
 -Max. with air-turbine: 160000 rpm
Electrics (voltage/frequency): 440/60 V/Hz
Total power requirement: 7 kW
Machinery dimensions:
 -Length: 4000 mm
 -Width: 3600 mm
 -Height: 3200 mm
Machinery weight: 4000 kg
