Offer #1605

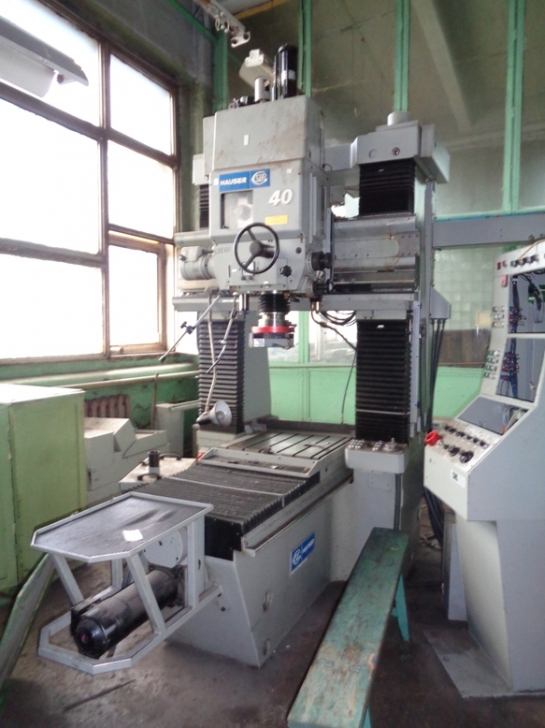

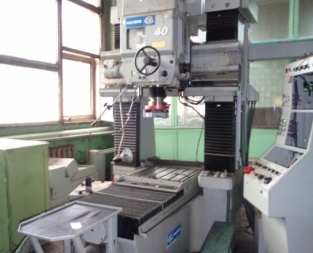

Jig grinding machine HAUSER S40 CNC 314
YOM: 1990
Manufacturer: Hauser
Made in: Switzerland
Machinery is not complete.
Specification:
Table length: 770 mm
Table width: 630 mm
Travel:
-Longitudinal X: 650 mm
-Cross Y: 450 mm
-Crossrail W: 500 mm
Distance from spindle center to vertical slide: 600 mm
Max. grinding diameter:
-Regular: 230 mm
-With display plate: 360 mm
Distance between columns: 750 mm
Max. angle with taper grinding: up to 16 degrees
Max. load on the table: 500 kg
Width of T-slots: 14 mm
Number of T-slots: 6
Distance between T-slots: 100 mm
Stroke length Z, infinitely adjustable: 0-140 mm
Planetary speed: 5-250 U/min
Feeding speed (on X-axis and Y-axis):
-Processing speed: 0-1800 mm/min
-Adjustment speed: 0-3000 mm/min
Feeding speed on W-axis: approx. 800 mm/min
Grinding spindle speeds:
-Min.: 4500 rpm
-Max.: 80000 rpm
-Max. with air-turbine: 160000 rpm
Electrics (voltage/frequency): 440/60 V/Hz
Total power requirement: 7 kW
Machinery dimensions:
-Length: 4000 mm
-Width: 3600 mm
-Height: 3200 mm
Machinery weight: 4000 kg
