Offer #759

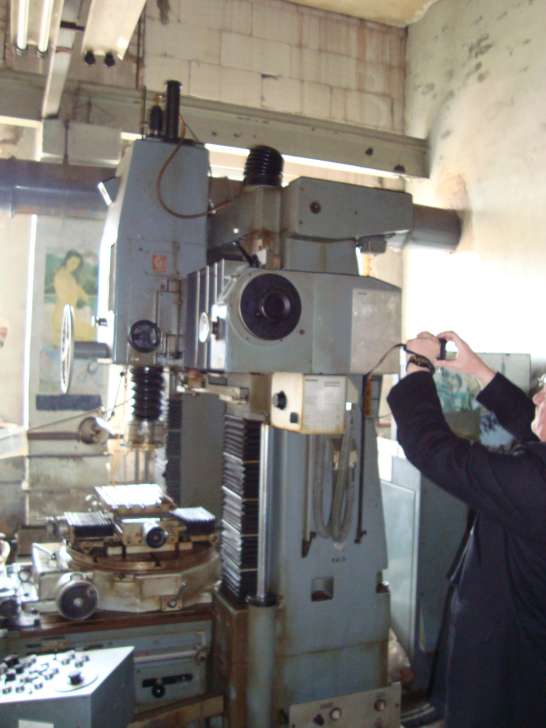

Jig grinding machine HAUSER 5 SM
Manufacturer: Hauser
Made in: Switzerland
Specification:
Table length: 750 mm
Table width: 620 mm
Longitudinal travel (X-axis): 700 mm
Transversal travel (Y-axis): 500 mm
Vertical travel (Z-axis): 150 mm
2 columns execution
Travel of the vertical slide: 500 mm
Passage from grinding motor to table: 500 mm
Max grinding diameter with display-plate: 300 mm
Passage between the columns: 840 mm
Max angle with taper grinding: up to 16 degrees
Vertical travel of grinding spindle, stepless:
-From 3 mm
-Up to 145 mm
Travel speeds, stepless: up to 2.8 m/min
Radial fine feed of U-axis: up to 4.5 mm
Planetary motion speeds of C-axis, stepless:
-From 10 rpm
-Up to 280 rpm
Possible grinding-spindle speeds, stepless:
-From 9000 rpm
-Up to 80000 rpm
Voltage: 50 Hz, 3x380 Volt
Total power required: 6.3 kW
Overall machine dimensions:
-Length: 2500 mm
-Width: 1700 mm
-Height: 2700 mm
Machine weight: about 5100 kg
