Offer #2064

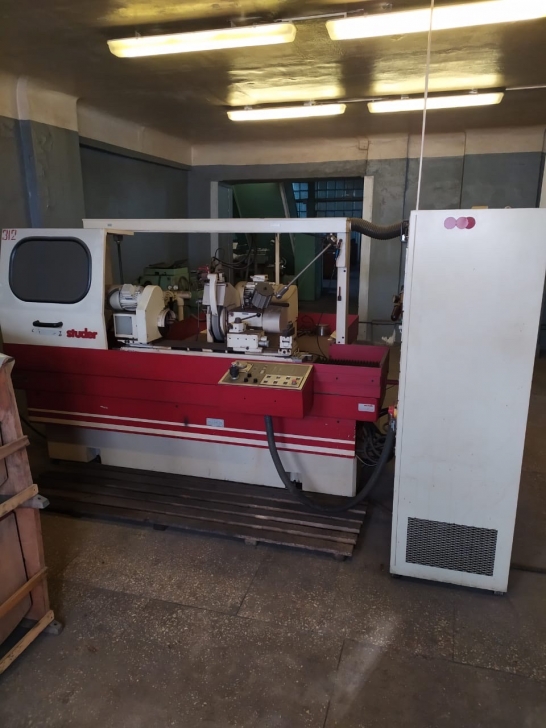

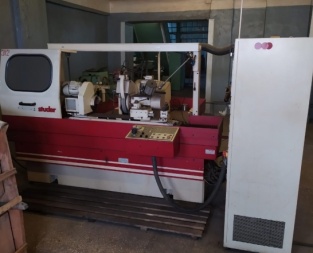

Cylindrical grinding machine STUDER S40-12
YOM: 1983.09
Manufacturer: Fritz Studer AGs (made of granitan)
Made in: Switzerland
Specification:
MAIN DIMENSIONS
Centre height: 125 mm
Distance between centres: 650 mm
Grinding length: 650 mm
Grinding diameter: 250 mm
LONGITUDINAL SLIDE
Speed: 50-9000 mm/min
Minimum automatic travel: 0.1 mm
Max. travel: 400 mm
Travel per revolution of electronic handwheel: 0.1 mm
Maximum swivel of table: 12 degress
WHEELHEAD
Grinding wheel:
-Diameter: 400 mm
-Width: 80 mm
-Bore: 127 mm
Power requirement: 3 kW
Peripheral speed: 30 m/s
Initial positioning: 210 mm
WORKHEAD
Swivel range: 0-90 degress
Speed range freely progammable: 30-675 rpm
Fitting taper: Morse 5
Collets: W-25
Power requirement: 1.1 kW
TAILSTOCK
Fitting taper: Morse 3
Centre travel: 30 mm
MACHINERY DIMENSIONS
Length: 3900 mm
Width: 2500 mm
Height: 1850 mm
Weight: 3400 kg
