Offer #1303

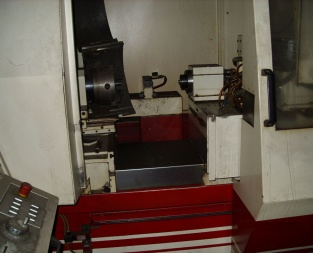

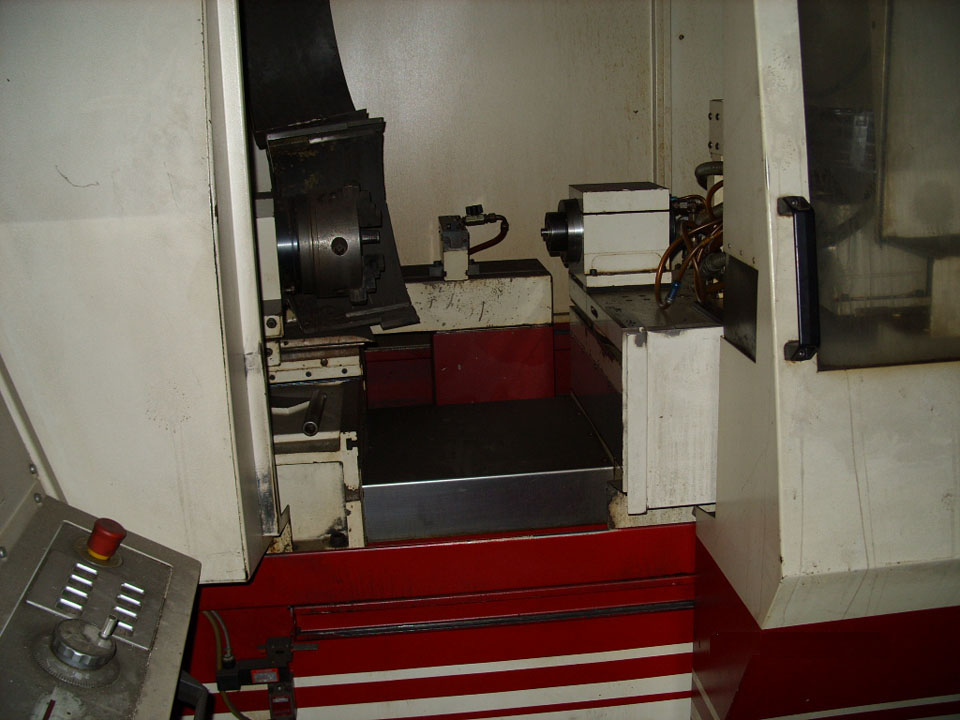

CNC Cylindrical grinding machine STUDER S45-4
YOM: 1989
Manufacturer: Fritz Studer AG
Made in: Switzerland
Quantity: 2 units
Specification:
Centre height above worktable: 175 mm
Grinding length: 200 mm
Max. grinding depth: 170 mm
Grinding bore:
-Min.: 1,5 mm
-Max.: 340 mm
GRINDING SPINDLE
Tool holder: Ø100
Rotation: ±180 degrees
WORK-PIECE SPINDLE
Taper: Morse 5
Spindle bore: 30 mm
Rotation:: 0-90 degrees
Feed rate:
-Grinding spindle: 0,01-5000 mm/min
-Work-piece spindle: 0,03-10000 mm/min
Spindle rotation (stepless): 5000-150000 U/min
Work-piece spindle rotation (stepless): 30-750 U/min
Total power required: ~12 kW
Voltage: 380 V; 50 Hz
Required area: 4700x4000 mm
Height: 2130 mm
Weight: 2700 kg
