Offer #524

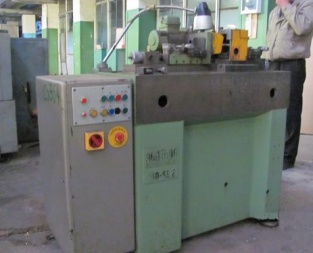

Centerless grinder AGATHON 150 SL2
Made in: Swiss
Manufacturer: AGATHON
Specification:
Grinding diameter: 0.1 – 10 mm
Max plunge length: 50 mm
Max plunge travel: 10 mm
Working plunge travel: 0-10 mm
High speed travel: 20 mm/sec
Working speed travel: 0.002 - 0.5 mm/sec
Grinding wheel speed: 4500 rpm
Regulating wheel speed: 20-150 rpm
Grinding wheel dimensions: 150x50x50 mm
Rugulating wheel dimensions: 100x50x40 mm
Total power requirement: 6 kW
Mini pressure: 5.6 bar
Dimensions: 1300x1100 mm
Weight: 700 kg
