Offer #1688

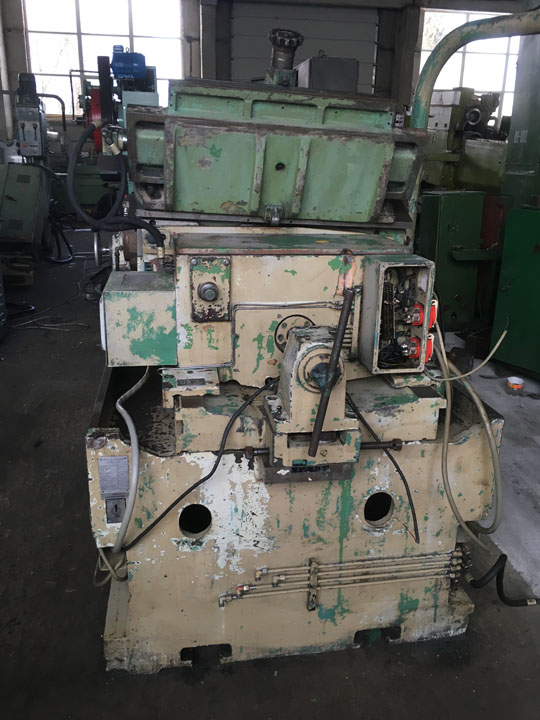

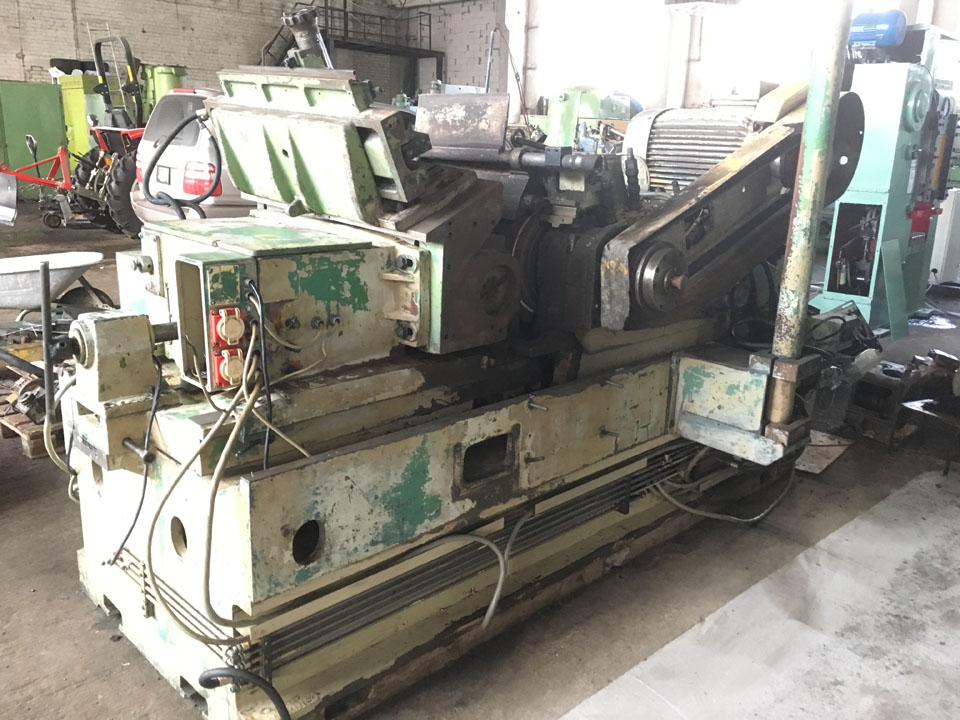

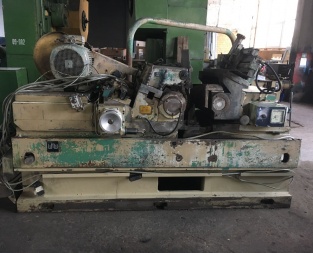

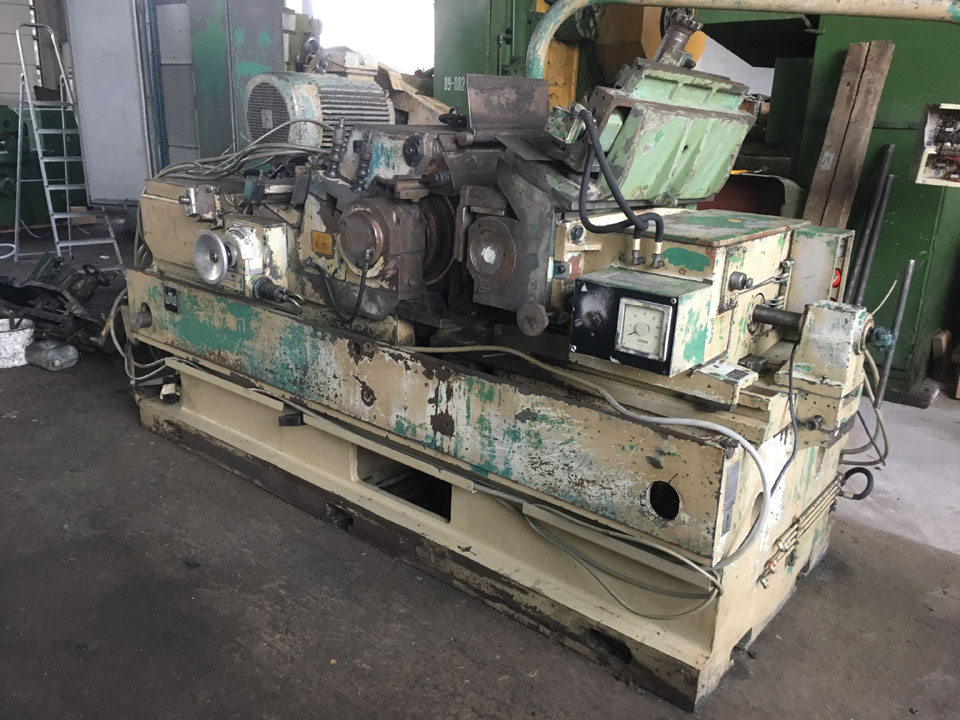

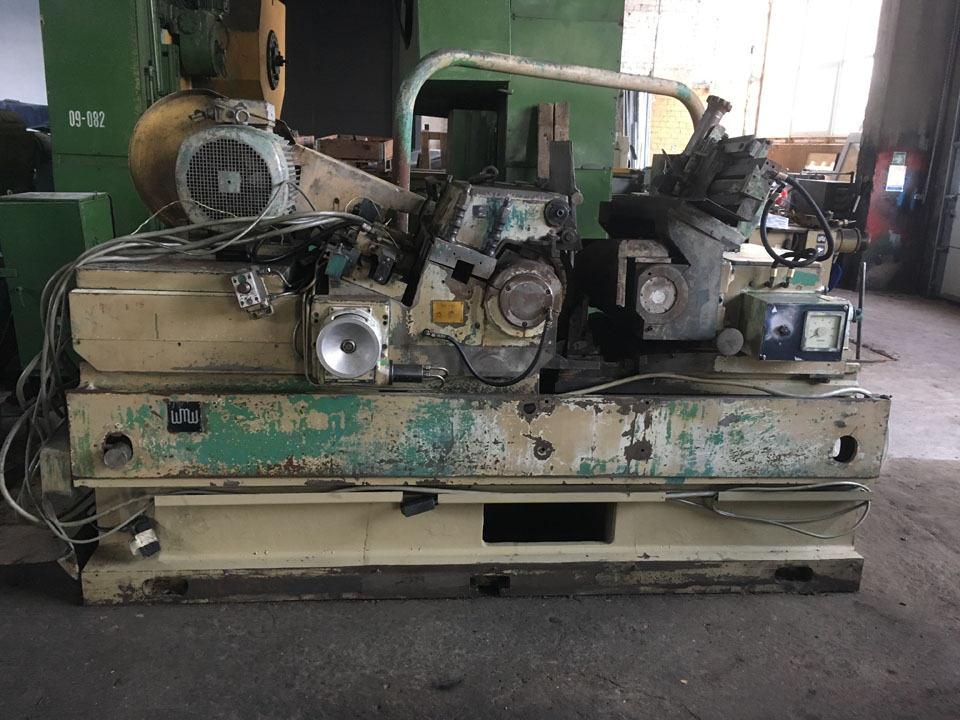

Automatic centerless grinding machine SASL 200X500
Manufacturer: MIKROSA
Made in: Germany
Specification:
Max. height from spindle to table: 240 mm
Height of the grinding spindle over the ground: 1100 mm
Diameter of the details:
-Max.: 200 mm
-Min.: 10 mm
Dimensions of the grinding wheel:
-Max. diameter: 500 mm
-Min. diameter: 370 mm
-Max. width: 500 mm
-Hole: 305 mm
Max. circle speed of the grinding wheel: 45 m/sec
Work rev number, stepless: 8-125 rev/min
Rev number of repair: 740 rev/min
Possibilities of the main wheel regulation:
-Axial regulation: +/-10 mm
-Vertical regulation: 200 mm
Min. size of feeding: 0,01 mm
Power: 54 kW
Dimensions: 3850x2300x2200 mm
Weight: 11500 kg
