Offer #1262

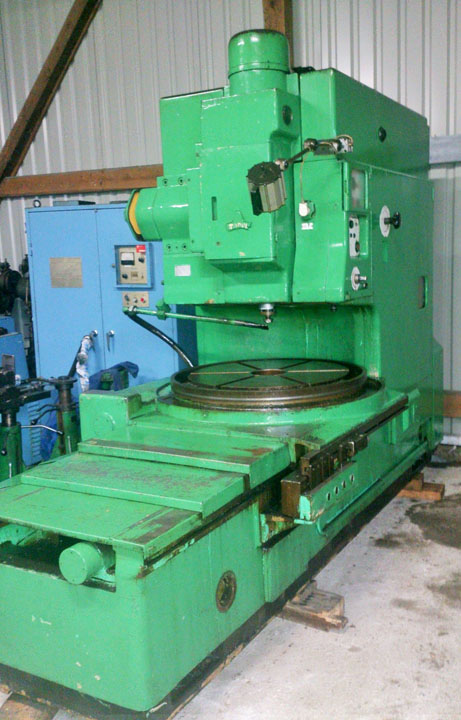

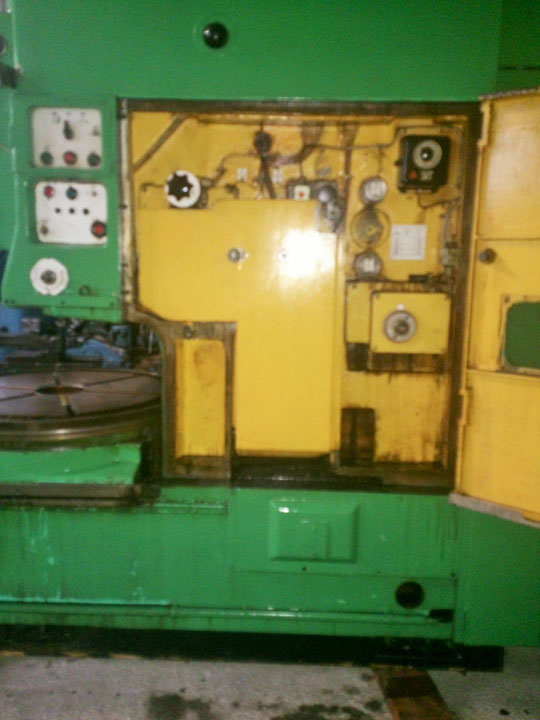

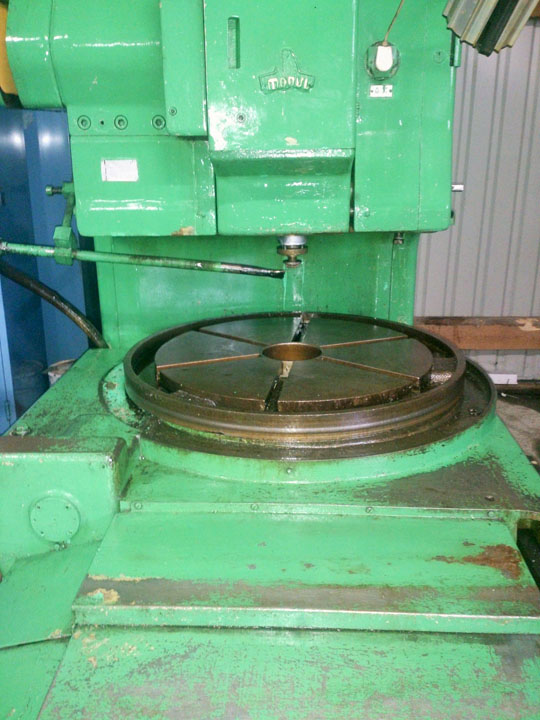

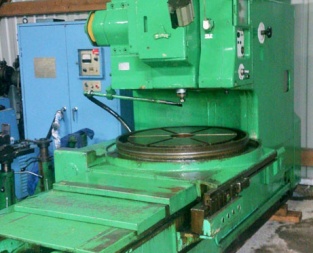

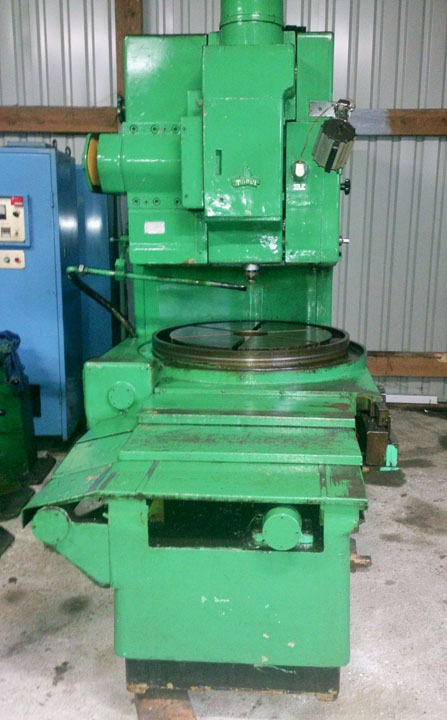

Gear shaper WMW ZSTWZ 1000x100
Manufacturer: WMW
Made in: Germany
Specification:
Max. diameter of gears cut: 1000 mm
Gear width: 160 mm
Max. module: 12 mm
Min. module: 1,25 mm
Table diameter: 900 mm
Table bore diameter: 125 mm
Cutter bore: 31.75 mm
No of ram strokes: 45-280 mm
Depth of hole: 700 mm
Max. helical angle: 30 degrees
Total power requirement: 8,8 kW
Machinery dimensions: 3000x1200x2300 mm
