Offer #821

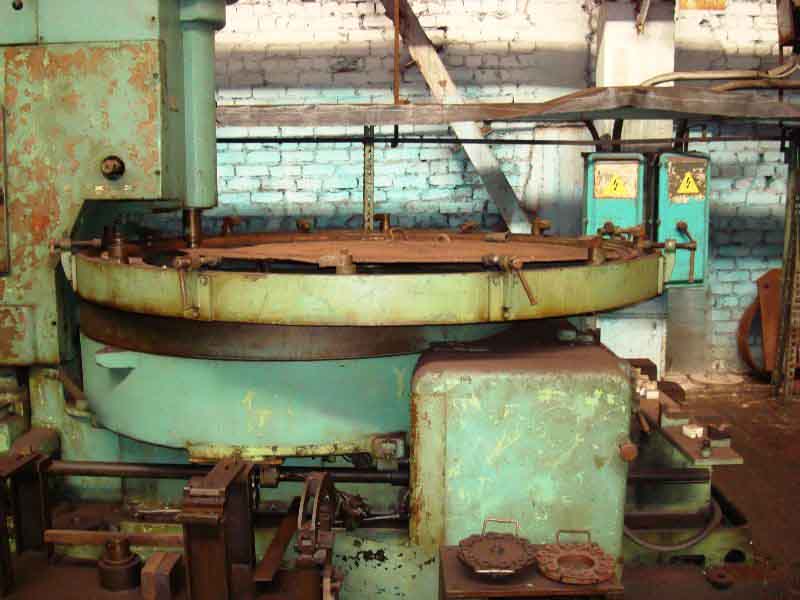

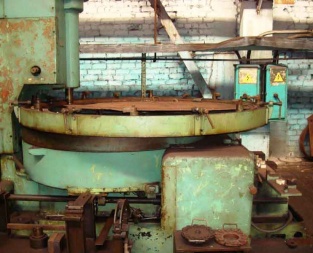

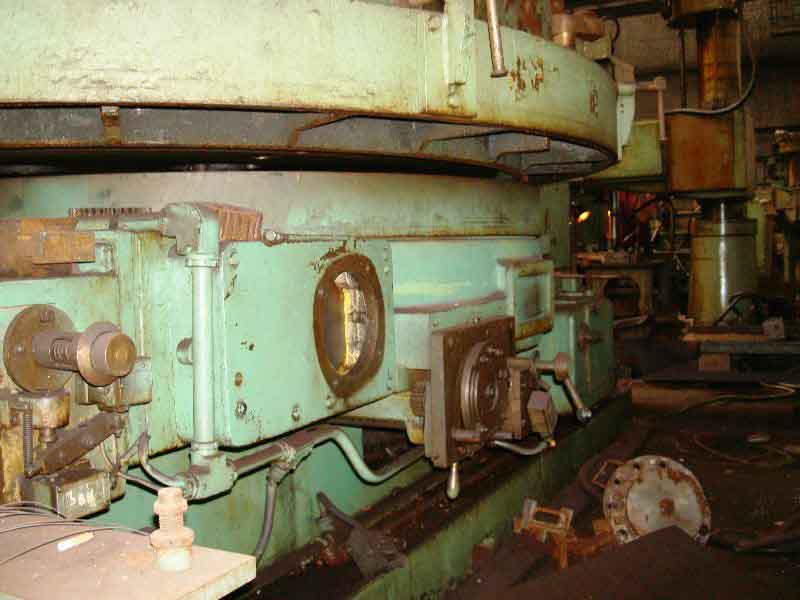

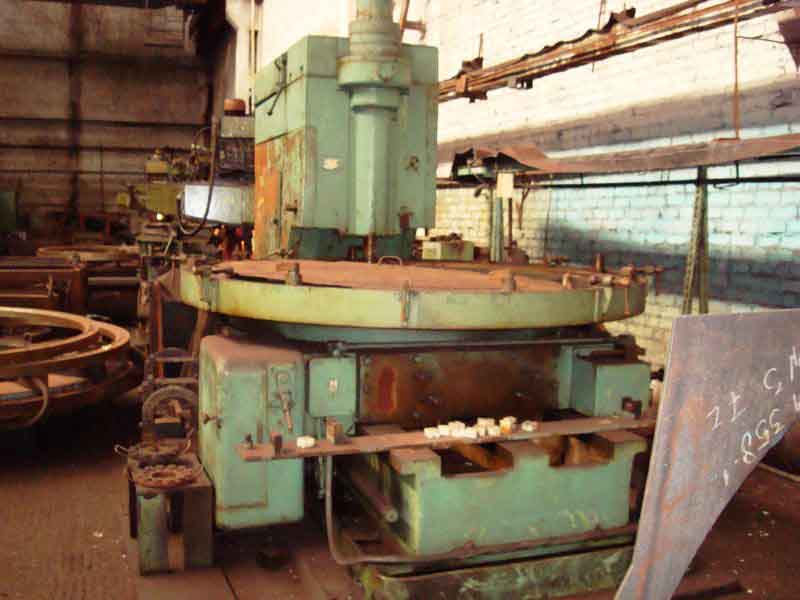

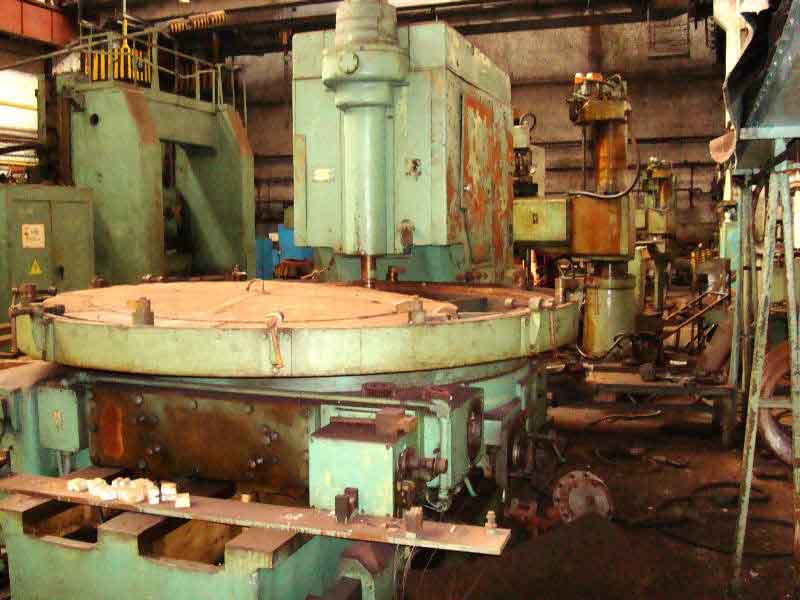

Gear shaper STANKO EZ-15B
Quantity: 1 unit
YOM: 1970
Country of origin: Russia
Manufacturer: Stanko
Specification:
Max diameter of work-piece: 2240 mm
Max width of gear ring: 170 mm
Max module: 12 mm
Max cutter stroke: 200 mm
Faceplate diameter: 1900 mm
Dia of core hole table: 880 mm
Spindle double stroke frequency: 22-136/min
Range of radical table feed: 1-5,4 mm/min
Table move high-speed: 177 mm/min
Max distance between axles and table: 1200 mm
Main motor power: 5.5 kW
Dimensions:
-Length: 5200 mm
-Width: 2450 mm
-Height: 3800 mm
Machine weight: 18 ton
