Offer #1781

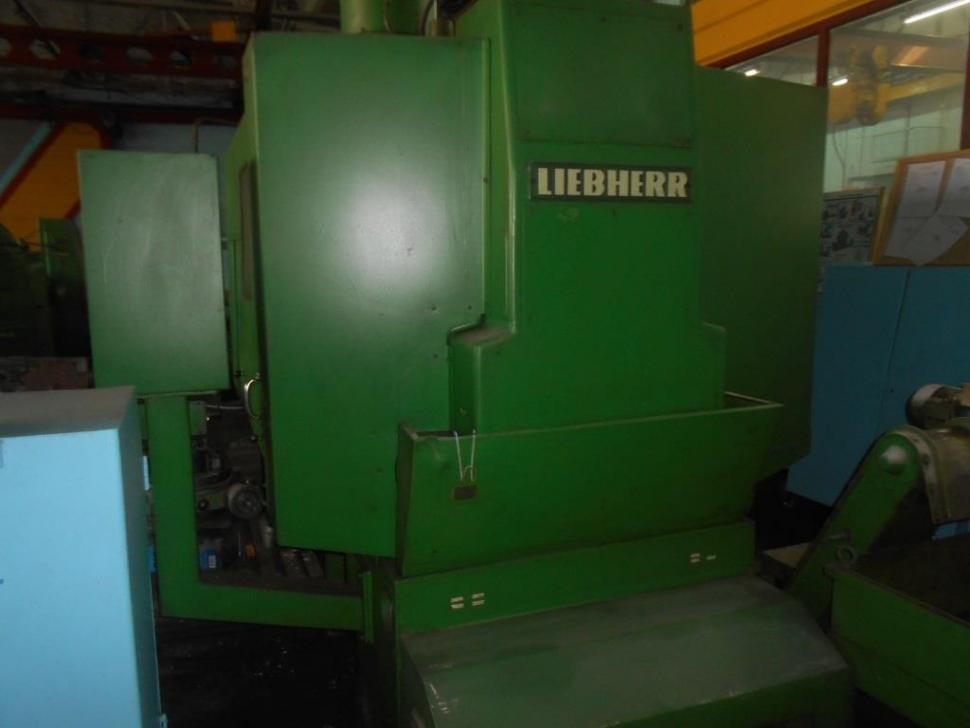

Vertical gear hobbing machine LIEBHERR L902
Manufacturer: LIEBHERR
Made in: Germany
Specification:
Max. wheel diameter: 900 mm
Gear width: 600 mm
Max. module: 10 / 12
Table diameter: 710 mm
Table hole: 160 mm
Dividing plate diameter: 575 mm
Table load: 4 t
Milling motor: 12 kW
Turning speed range - drilling: 29-232 U/min
Spindle taper: ISO 40
Milling head axial adjustable: 200 mm
Distance table / middle of spindle: 500 mm
Milling head - swivable: +/- 45°
Total power requirement: 20 kW
Weight of the machine: 12 t
Dimensions of the machine: 4500x2100x3100 mm
