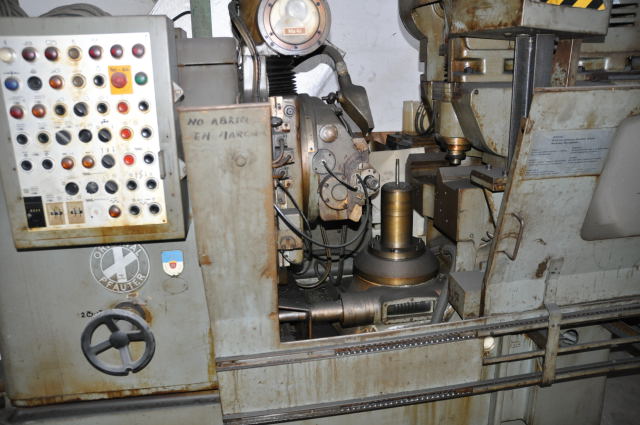

Gear hobbing machine PFAUTER RA 200

Offer #1300

Gear hobbing machine PFAUTER RA 200
YOM: 1972
Manufacturer: Pfauter
Made in: Germany

Specification:

CAPACITY
Max wheel diameter: 203 mm
Max helix angle of tooth: 40 degree
Min number of teeth to be hobbed:
 -Standard (1-start index drive): 6(9)
 -Special (2-start index drive): 4
Max number of teeth to be hobbed: 48(72)

DIMENSIONS:
Center distance between workpiece and hob
 -Min: 11 mm
 -Max: 140 mm
Diameter of work table: 220 mm
Diameter of table bore: 62 mm
Bore of table bushing: 72 mm
Diameter of hob arbors (1 included with machine): 21 mm, 24 mm, 19 mm, 11 mm
Hob spindle taper: Morse 4
Max hob dimensions:
 -Diameter: 124 mm
 -Length: 176 mm
Max hob shift-manual or automatic: 110 mm
Hob speed-adjustable from: 80 - 500 R.P.M.

ELECTRIC SPECIFICATIONS
Voltage (standard): 220/380 volts
Frequency (standard): 50 Hz
Rated output of main motor: 10 HP
Total power consumption Of machine: 16.5 kVA

WEIGHT AND SPACE REQUIRED:
Dimensions of the machine: 3600x2000x2400 mm
Weight of the machine: 7 tons
