Offer #552

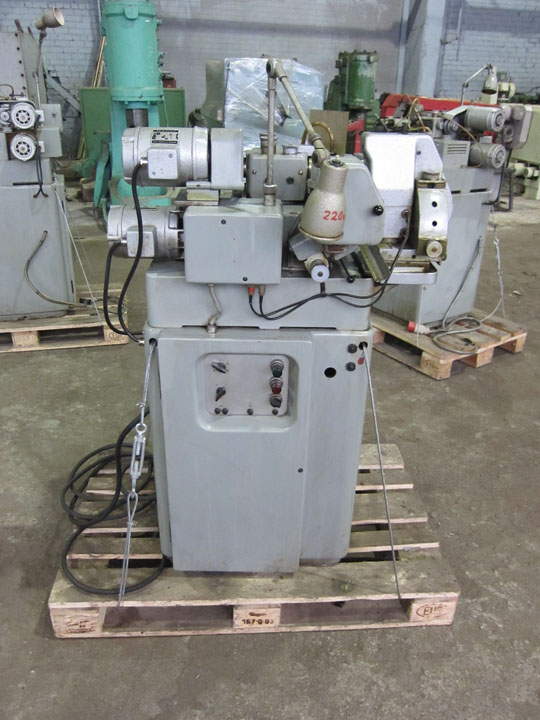

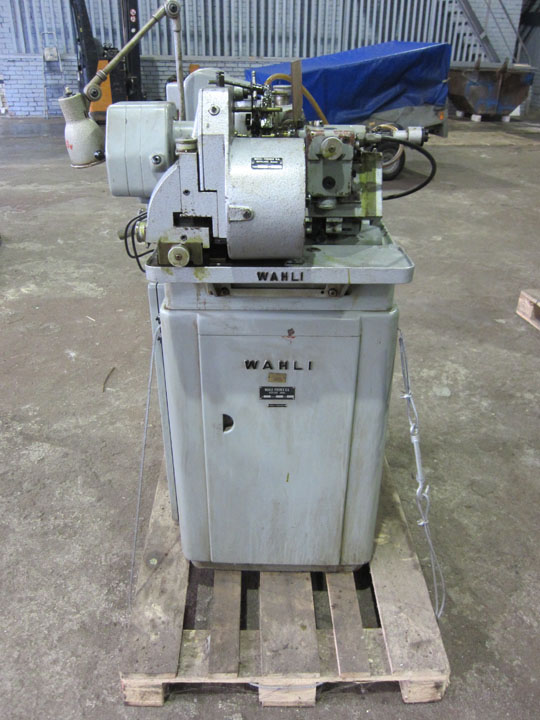

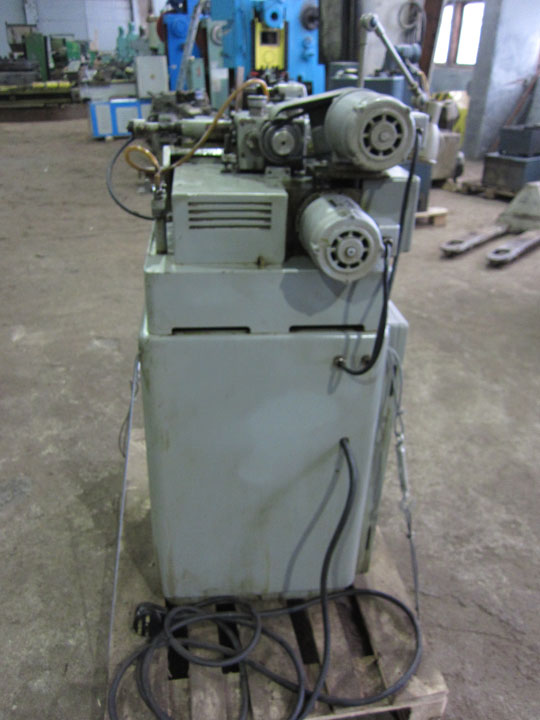

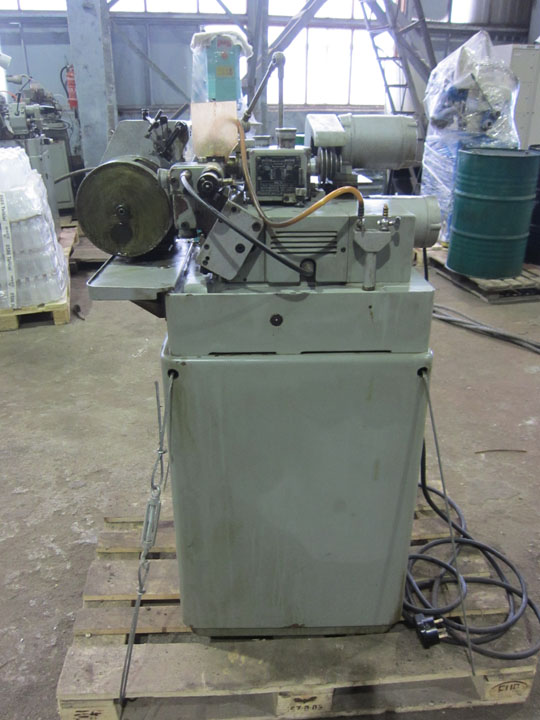

Gear hobber WAHLI Type 96
Quantity: 3 units
Serial Numbers: 8001; 8002; 8003
Country of Origin: Switzerland
Manufacturer: WAHLI FRERES S.A.
Specification:
Max length between centres: 80 mm
Max cut length: 50 mm
Component diameter:
-With short micrometer screws: 0-24 mm
-With long micrometer screws: 0-50 mm
Number of teeth cut:
-W96 pinions: 2-50
-W95 wheels: 6-120 and above
Table speed, steplessly adjustable: 0-2 m/min
Table rapid return speed: 3 m/min
Max cutter diameter: 32 mm
Cutter spindle speeds: 800, 1450, 2400, 3200 rpm
Max axial adjustment of cutter spindle: 10 mm
Max distance between work spindle and cutter spindle axes:
-With short micrometer screws: 16 mm
-With long micrometer screws: 30 mm
Cutter spindle motor: 0.25 hp
Hydraulic pump motor: 0.33 hp
Coolant pump motor: 0.1 hp
Inside length of cutter drive Vee-Belt: 400 mm
Dividing disc outside diameter: 100 mm
Cutter spindle diameter: 35 mm
Hydraulic tank capacity: 13 l
Coolant tank capacity: 10 l
Machine weight: 380 kg
