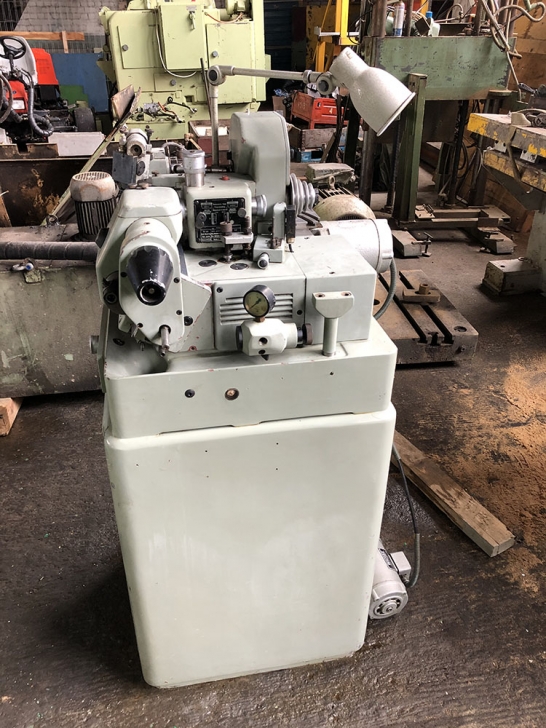

Gear hobber WAHLI Type 90

Offer #2061

Gear hobber WAHLI Type 90
Manufacturer: WAHLI FRERES S.A.
Made in: Switzerland

Specification:

Distance between centers: 80 mm
Max. length of milling: 50 mm
Max. diameter of work-piece: 40 mm
Module of gear wheel: 0,05-1
Milling teeth number: 6-200
Pinions: 64 pcs
Speed of longitudinal feed: 0-2 m/min
Speed of forward stroke, longitudinal: 3 m/min
Number of mill revolution: 660, 1450, 1850, 2500, 1350, 3000, 3800, 5300/min
Max. axial mill moving: 10 mm
Max. depth infeed milling: 2,5 mm
Max. distance between milling cutter axis and work-piece spindle: 30 mm
Max. diameter of milling cutter: 32 mm
Diameter of mill spindle: 35 mm
Oil capacity of cooler: 10 l
Dimensions: 750x800x1400 mm
Machine weight: 430 kg
