Offer #1347

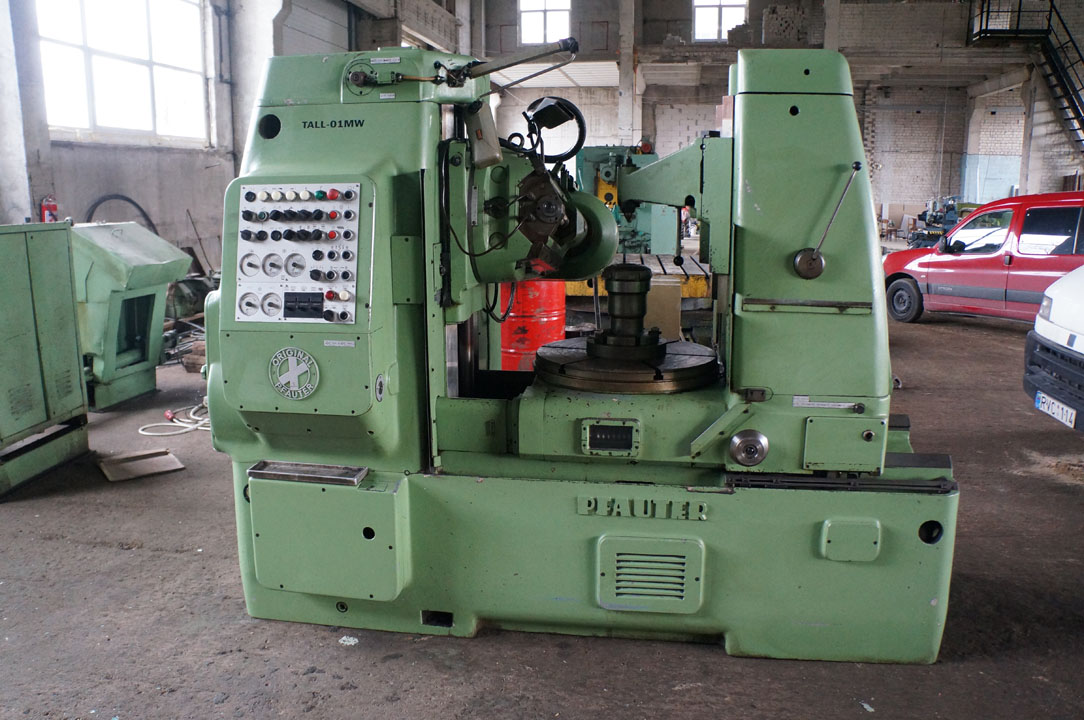

Gear hobber PFAUTER P900
YOM: 1973
S/n: 23827
Manufacturer: Pfauter
Made in: Germany
Specification:
Max. diameter of piece: 900 mm
Wheel diameter: 900 mm
Gear width: 500 mm
Max. module: 8/10
Min. module: 1
Table diameter: 700 mm
Table bore diameter: 160 mm
Diameter of hob: 195x258 mm
Shifting: 200 mm
Hob turning speeds: 60-300 rot/min
Milling slide swivelling: 210 Grad
Feeds (axial): 0,125-2,0 mm/WU
Feeds (radial for worm wheels): 0,125-5,6 mm/WU
Feeds (tangential): 0,15-2,28 mm/min
Electrics (voltage/frequency): 380/50 V/Hz
Main drive motor: 7,5 kW
Total power requirement: 16 kW
Dimensions: 5980x2915x3430 mm
Weight of the machine: 8500 kg
