Offer #2003

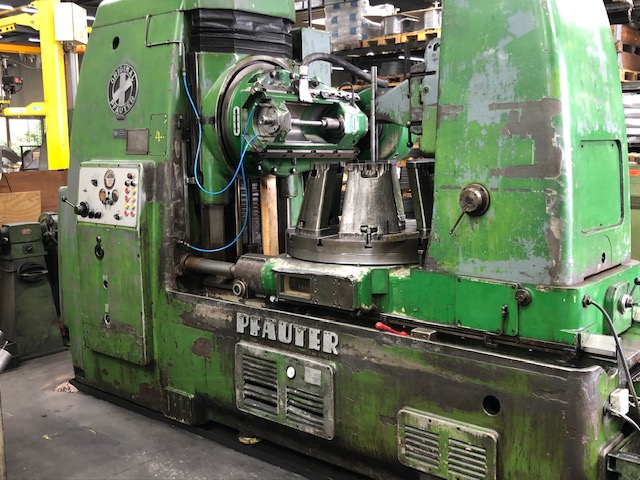

Gear hobber PFAUTER P1250
Manufacturer: Pfauter
Made in: Germany
Specification:
Max. gear diameter: 1250 mm
Module: 12
Hobbing length: 585 mm
Cone milling spindle: Morse 5
Distance between spindle axis and axis table:
-Max.: 737 mm
-Min.: 60 mm
Feed range:
-Axial: 0,30 - 6 mm/min
-Radial: 0,09 - 1,8 mm/min
-Tangential: 0,126 - 2,53 mm/min
Hob spindle speeds: 32-200 rpm
Max. tool:
-Length: 260 mm
-Diameter: 220 mm
Min. number of milling teeth: 12
Tangential tour: 240 mm
Weight: 12000 kg
