Offer #422

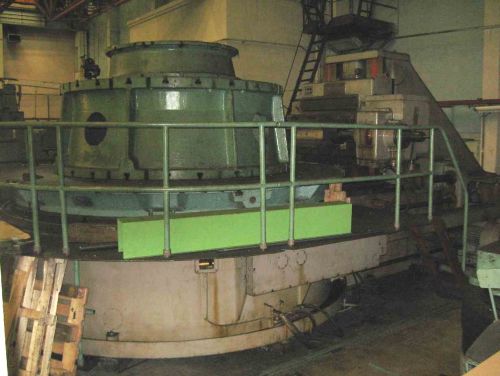

Gear hobber KOLOMNA 544M
YOM: 1983
Country of origin: Russia
Manufacturer: Kolomna
Condition: very good
Specification:
Max working piece diameter: 2000 mm
Min working piece diameter: 500 mm
Max module for very exact gear: 10
Max module ordinary: 30
Number of teeth: 90-500
Max diameter of mill: 320
Diameter of table: 2500 mm
Distance between surface of table and mill: 550-950 mm
Distance between mill and table: 300-1500 mm
Frequency of mill rev: 6-30 rev/min
Number of mill speeds: 10
Radial feed for on table rev: 0,066-2,2 mm/rev
Number of feeding: 16
Vertical run of support: 300-400 mm
Power of main motor: 15 kW
Max loading on table: 10 000 kg
Overall dimensions: 6952x3300x3100 mm
Weight: 51 ton
