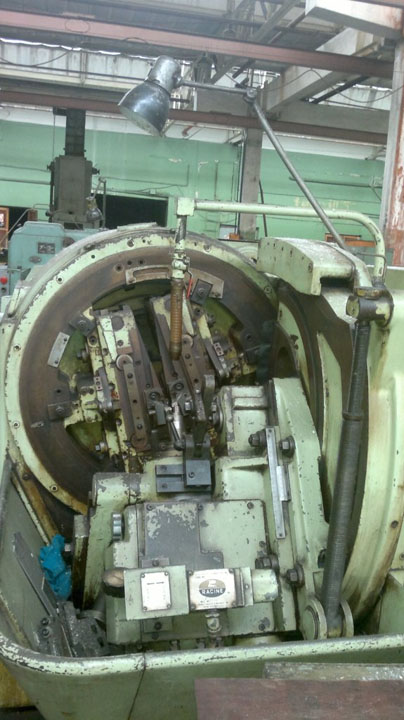

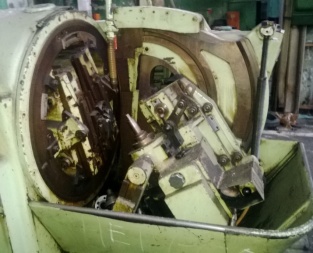

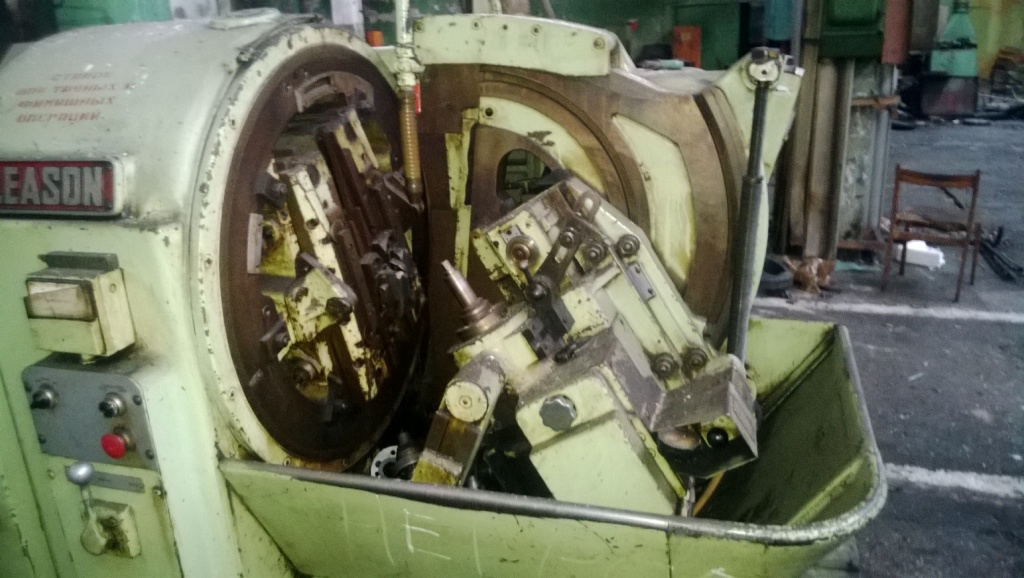

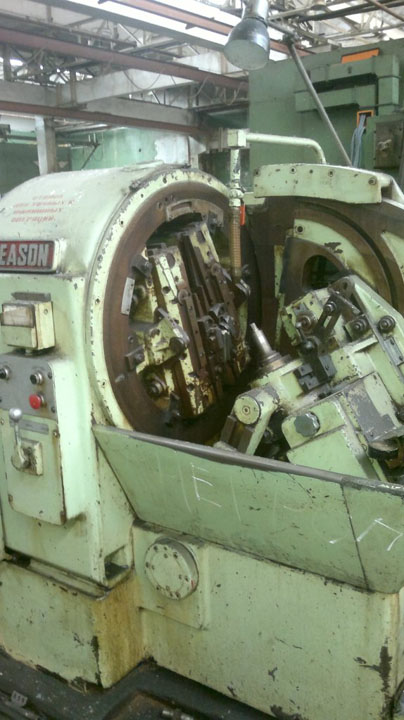

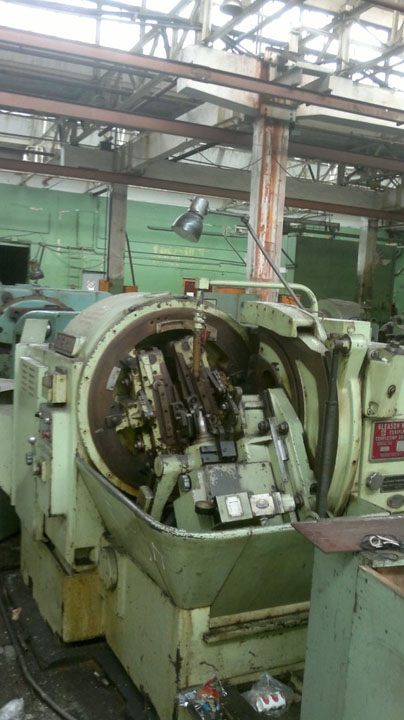

Coniflex completing gear generator GLEASON 710

Offer #1077

Coniflex completing gear generator GLEASON 710
Manufacturer: Rochester, N.Y.
Made in: USA

Specification:

BASIC TECHNICAL PARAMETERS
Max. length of dividing cone: 107 mm
Min. length of dividing cone: 0 mm
Max. adjusting angle: 90 degrees
Min. adjusting angle: 8 degrees
Transmissive ratio: 6:1
Max. diametral pitch: 6,35
Diapason of division: 9-120
Width of tooth: 35 mm

MAIN SPINDLE
Diameter of cone opening on tip: 58,34 mm
Obliquity on 304,8 mm length: 12,7 mm
Obliquity: 15,87 mm

ELECTRICAL PART
Main motor: 50 Hz, 1500 r/min
Stepless adjustable motor: 1500 r/min
Motor of hydraulic pump: 1500 r/min
Motor of frigorific pump: 3000 r/min

DIMENSIONS
Length: 2032 mm
Width: 1524 mm
Height: 1626 mm
Weight: 5000 kg
