Offer #1076

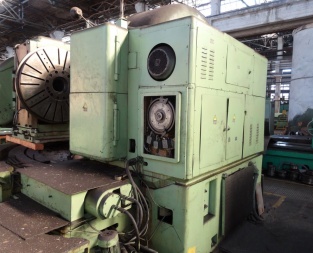

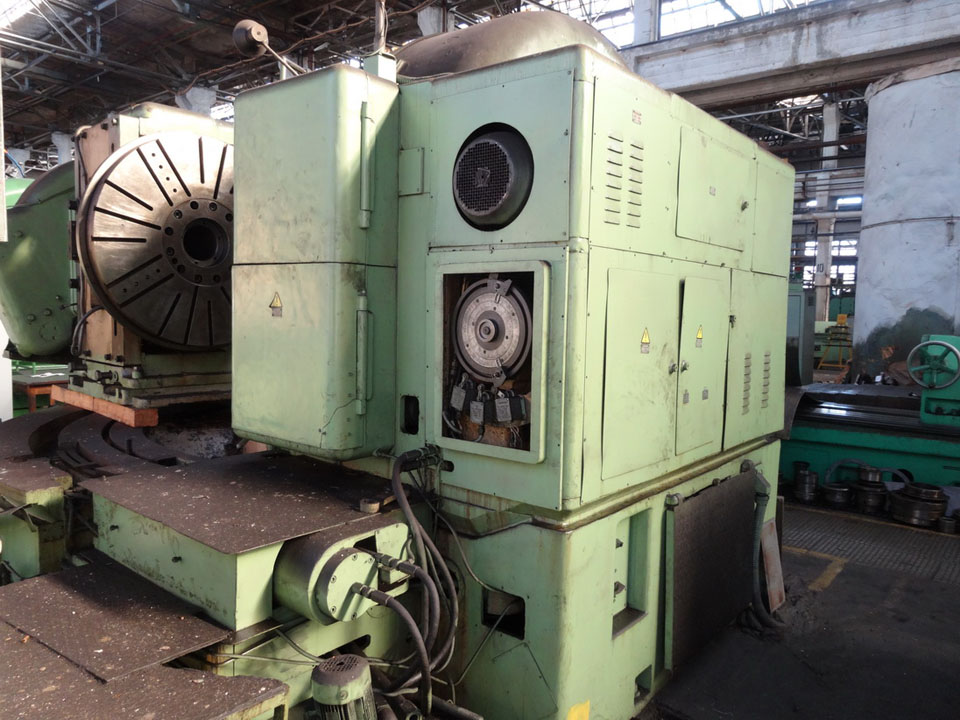

Bevel gear cutting machine ST284
YOM: 1992
Manufacturer: Saratov factory of heavy gear cutting machines
Made in: Russia
The machine is designed for draft and clean cutting of bevel gears with standart (tapered) teeth and teeth of equal depth, "Zerol" transmission and hypoid gears.
Specification:
Max. processing diameter: 1600 mm
Max. module: 30 mm
Max. height of the cut tooth: 58 mm
Max. width of the gear wreath: 250 mm
Inclination angle of the tooth: 0-45 degrees
Revolution number of the tool spindle: 8,3-62 rpm
Main drive power: 13 kW
Total power of all drives: 33,38 kW
Machine dimensions (L х W х H): 5700 х 4000 х 3200 mm
Machine weight: 43900 kg
