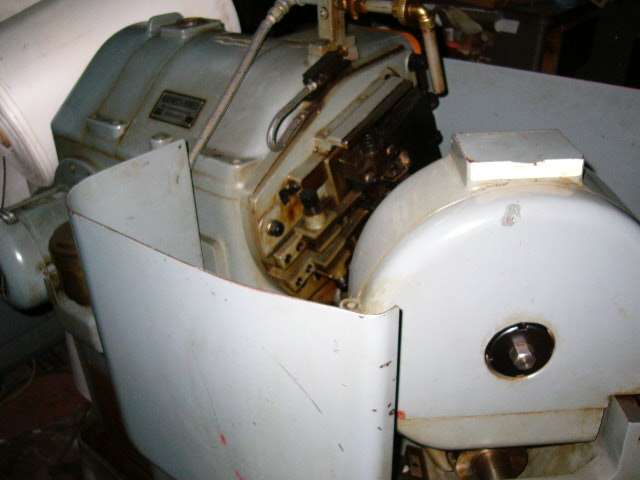

Bevel gear cutter HEIDENREICH & HARBECK model 12H

  • More pictures
  • Videos
  • Print

Offer #761

Bevel gear cutter HEIDENREICH & HARBECK model 12H
Made in: Germany

Specification:

Max diameter: 120 mm
Min diameter: 6 mm
Max length: 160 mm
Modul range: 0,5...2,0
Number of teeth: 6...325
Spiral step of toothwheel: 7,6...3900 mm
Angle of spiral: 70 degrees
Max angle of dividing taper: 90 degrees
Max length of dividing taper: 60 mm
Max tooth width: 22 mm
Max stroke of pusher: 30 mm
Min number of teeth (by ratio from 1:1 to 1:5): 18
Time needed to process one tooth: 4...60 sec
Power: 2,2 kW
Feeding of levels for every turn of main spindle: 0,13...0,9 mm
Overall height: 1,413 mm
Floorage for machine: 520x1,120 mm
Dimensions:
  -Length: 1700 mm
  -Height: 1800 mm
  -Width: 1000 mm
Machine weight: about 830 kg
