Offer #953

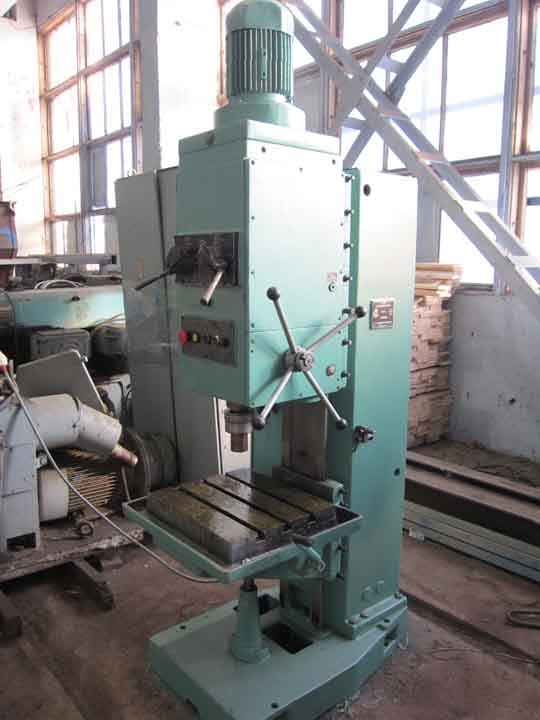

Vertical drilling machine 2H135
Serial numbers: 52744, 44732
Manufacturer: Lenin Machine Factory
Made in: Russia
Quantity: 2 units
Specification:
Max. drilling diameter in steel 45: 35 mm
Spindle taper dimensions according to ST SEV 147-75: Morze 4
Distance from spindle axis to column: 300 mm
Max. spindle stroke: 250 mm
Distance from spindle back to:
-Table: 30...750 mm
-Plate: 700...1120 mm
Max. traverse of drilling head: 170 mm
Spindle movement for one wheel turn: 122,46 mm
Dimensions of working table surface: 450x500 mm
Max. table stroke: 300 mm
Number of spindle speeds: 12
Number of feeds: 9
Feed limits: 0,1...1,6 mm/turn
Power of main electric motor: 4,0 kW
Overall machine dimensions: 1030х835х2535 mm
Weight: 1200 kg
