Offer #2122

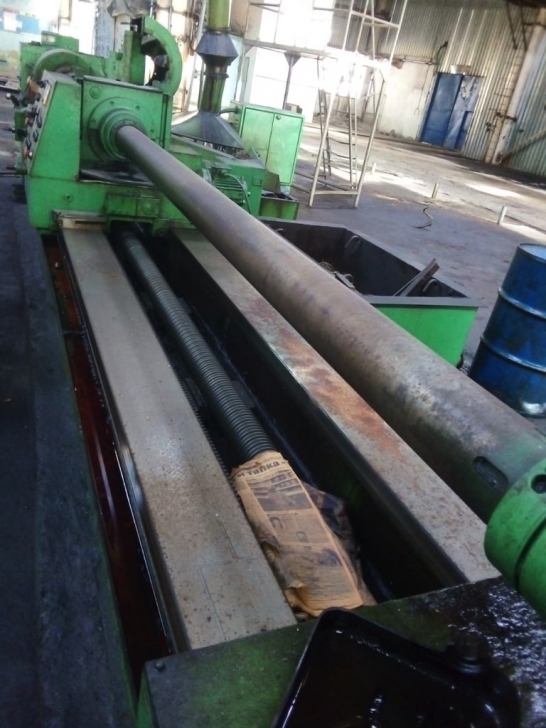

Deep hole drilling machinery RYAZAN RT60158
YOM: 1986
Manufacturer: RYAZAN
Made in: Russia
Specification:
Diameters of work-pieces to be clamped:
-In a collet chuck: 230 mm
-In a steady rest: 100-300 mm
Diameters of work-piece holes (boring): 80-250 mm
Work-piece length:
-Min: 600 mm
-Max: 2000 mm
Height of the centers over the bed guides: 315 mm
Spindle headstock rotation frequency: 40-500 rpm
Amount of spindle headstock speeds: 12
Range of working feeds: 5-3000 mm/min
The number of feeding steps: stepless
Speed of rapid headstock stem feed: 3000 mm/min
Machine dimensions:
-Length: 9500 mm
-Width: 2750 mm
-Height: 1415 mm
Machine weight: 13600 kg
Description:
Designed for boring holes with diameters of 100-200 mm. The machine is supplied with a set-up for boring holes with a diameter of 140 mm.
